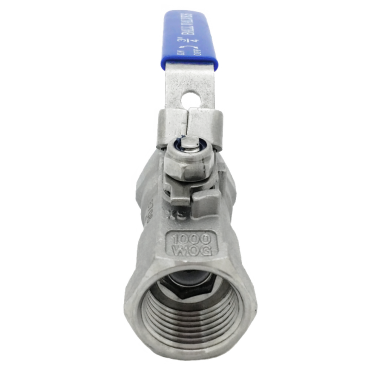

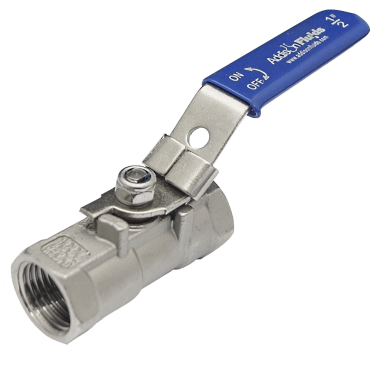

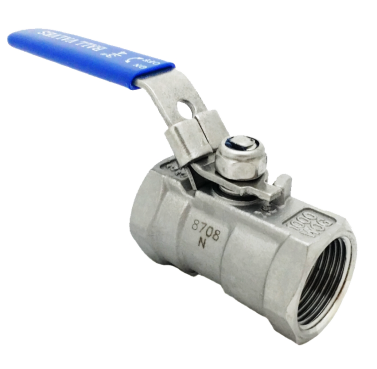

1 Piece Ball Valve

1 Piece Ball Valve
1 Piece Ball Valve
1 Piece Ball Valve
1 Piece Ball Valve
Size
  • ​1/4” – 4" (DN8-100)
Material
  • Stainless Steel SS316
​Working Pressure
  • 1000 PSI
Connection Type
  • BSPP
  • NPT
CATALOGUE :

​1 Piece Ball Valve


1 Piece Reduced Bore 1000 PSI Stainless Steel Threaded Ball Valve

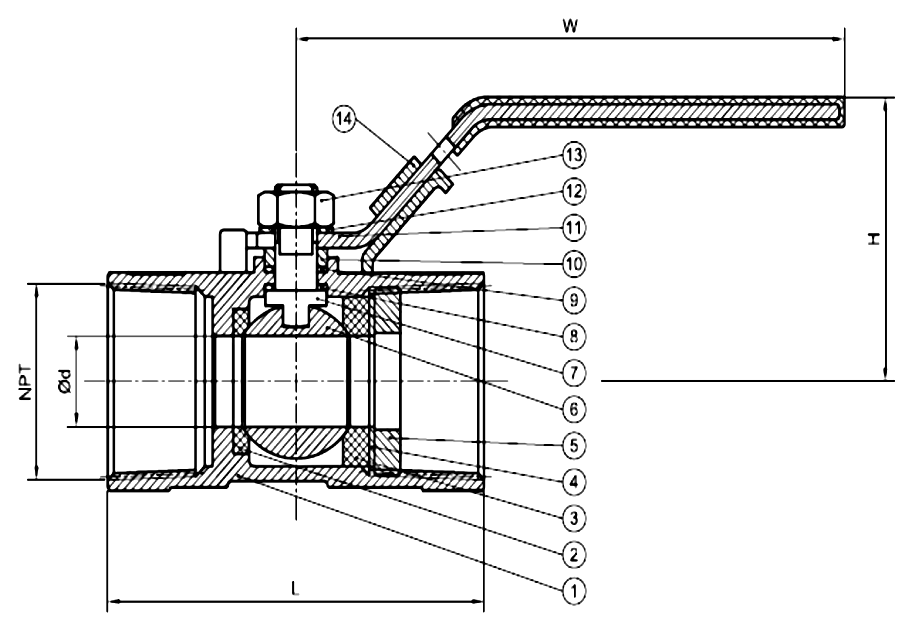

1 Pc Reduced Bore 1000PSI Stainless Steel Threaded Ball Valve Drawing
1 Piece Reduced Bore 1000PSI Stainless Steel Threaded Ball Valve Drawing
No
Part Name
Material
1
Body
SS316 & CF8M
2
Cap
SS316
3
Seat
PTFE
4
Ball
SS316
5
Seal Gasket
​PTFE
6
Stem Seal
PTFE
7
Stem
SS316
8
Anti- Static Device
SS304
9
Stem Packing
​PTFE
10
Packing Gland
SS304
11
Spring Washer
SS301
12
Handle
SS201
13
Stem Nut
SS304

Dimension List

NPS
Connection
IMPA Code
Part No
d
L
H
E
Weight (kg)
1/4"
BSPP
75 24 11
VL-S-B1-G-1000-04
5
40
24
72
0.07
3/8"
BSPP
75 24 12
VL-S-B1-G-1000-06
7
45
27
80
0.10
1/2"
BSPP
75 24 13
VL-S-B1-G-1000-08
9
57
34.5
97
0.20
3/4"
 BSPP
75 24 14
VL-S-B1-G-1000-12
12
60
40
92
0.26
1"
BSPP
75 24 15
VL-S-B1-G-1000-16
15
70.5
44
125
0.40
1  1/4"
 BSPP
75 24 16
VL-S-B1-G-1000-20
20
78
50
125
0.70
1  1/2"
BSPP
75 24 17
VL-S-B1-G-1000-24
25
83.5
54
155
0.80
2"
BSPP
75 24 18
VL-S-B1-G-1000-32
32
99.5
60
155
1.28
2  1/2"
BSPP
​-
VL-S-B1-G-1000-40
38
122
87
183
2.34
3"
BSPP
-
VL-S-B1-G-1000-48
50
148.5
97
183
3.50
4"
​BSPP
-
VL-S-B1-G-1000-64
65
193
117
220
9.05
1/4"
​NPT
-
VL-S-B1-N-1000-04
5
40
24
72
0.07
3/8"
​NPT
​-
VL-S-B1-N-1000-06
7
45
27
80
0.10
1/2"
​NPT
-
VL-S-B1-N-1000-08
9
​57
34.5
97
0.20
3/4"
​NPT
-
VL-S-B1-N-1000-12
12
60
40
92
0.26
1"
​NPT
-
VL-S-B1-N-1000-16
15
​70.5
44
125
0.40
1  1/4"
​NPT
-
VL-S-B1-N-1000-20
20
78
50
125
0.70
1  1/2"
​NPT
-
VL-S-B1-N-1000-24
25
83.5
54
155
0.80
2"
​NPT
-
VL-S-B1-N-1000-32
32
99.5
60
155
1.28
2  1/2"
​NPT
-
VL-S-B1-N-1000-40
38
​122
87
183
2.34
3"
​NPT
​-
VL-S-B1-N-1000-48
50
148.5
97
183
3.50
4"
​NPT
-
VL-S-B1-N-1000-64
65
193
117
220
9.05

Pressure-Temperature Rating

Pressure-Temperature Rating

1 Piece Ball Valve Catalogue

1 Piece Ball Valve pdf

Conditions of Use of Catalogue​
Specifications of the Products or other information on the subject of the agreement serve only as a description and include no guarantee on their condition. Deviations from these specifications are not considered as defects as long as they remain within the frame of the state-of-the-art permitted and as long as their functionality is not considerably affected.
