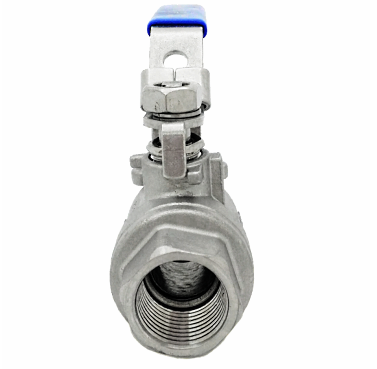

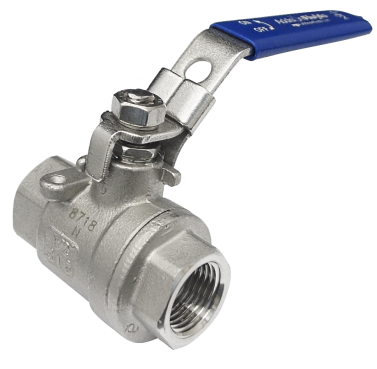

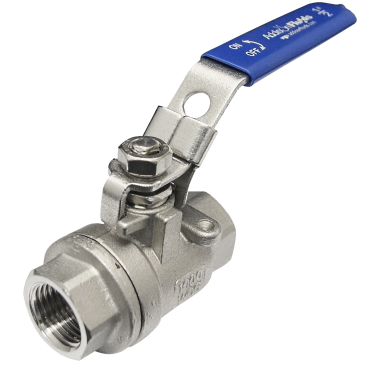

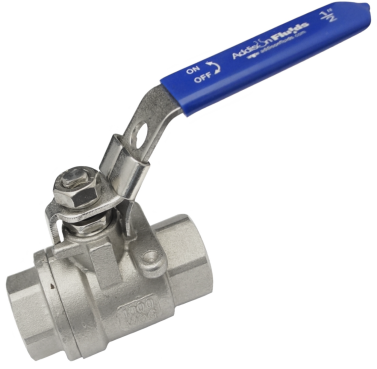

2 Piece Ball Valve

2 Piece Ball Valve
2 Piece Ball Valve
2 Piece Ball Valve
2 Piece Ball Valve
Size
  • ​1/4” – 4" (DN8-100)
Material
  • Stainless Steel SS316
​Working Pressure
  • 1000 PSI
  • 2000 PSI
Connection Type
  • BSPP
  • NPT
CATALOGUE :

2 Piece Ball Valve


2 Piece Full Bore 1000 PSI Stainless Steel Threaded Ball Valve

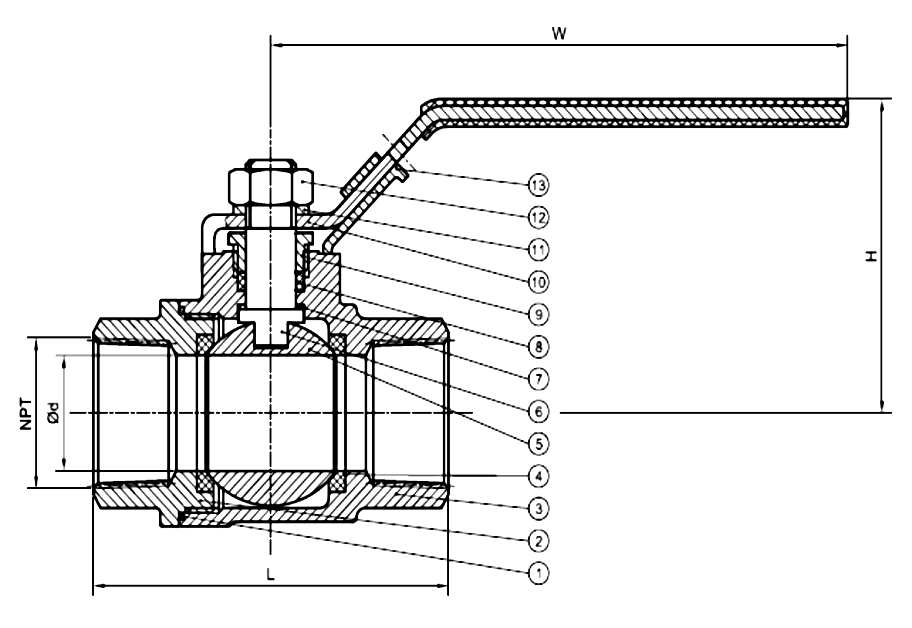

2 Pc Full Bore 1000 PSI Stainless Steel Threaded Ball Valve Drawing
2 Piece Full Bore 1000 PSI Stainless Steel Threaded Ball Valve Drawing
No
Part Name
Material
1
Body
SS316 & CF8M
2
Cap
SS316
3
Seat
PTFE
4
Ball
SS316
5
Seal Gasket
​PTFE
6
Stem Seal
PTFE
7
Stem
SS316
8
Anti- Static Device
SS304
9
Stem Packing
​PTFE
10
Packing Gland
SS304
11
Spring Washer
SS301
12
Handle
SS201
13
Stem Nut
SS304

Dimension List (1000 PSI)

NPS
Connection
IMPA Code
Part No
d
L
H
E
Weight (kg)
1/4"
BSPP
-
VL-S-B2-G-1000-04
10
53
45
100
0.21
3/8"
BSPP
-
VL-S-B2-G-1000-06
12
53
45
100
0.25
1/2"
BSPP
-
VL-S-B2-G-1000-08
15
62
49
104
0.30
3/4"
 BSPP
-
VL-S-B2-G-1000-12
20
70
55
118
0.51
1"
BSPP
-
VL-S-B2-G-1000-16
25
81
67
145
0.75
1  1/4"
 BSPP
-
VL-S-B2-G-1000-20
32
95
70
145
1.48
1  1/2"
BSPP
-
VL-S-B2-G-1000-24
38
105
80
177
1.72
2"
BSPP
-
VL-S-B2-G-1000-32
50
117
92
177
3.08
2  1/2"
BSPP
-
VL-S-B2-G-1000-40
65
163
113
224
4.85
3"
BSPP
-
VL-S-B2-G-1000-48
80
190
127
242
7.53
4"
​BSPP
-
VL-S-B2-G-1000-64
96
227
180
280
13.5
1/4"
​NPT
-
VL-S-B2-N-1000-04
10
53
45
100
0.21
3/8"
​NPT
-
VL-S-B2-N-1000-06
12
53
45
100
0.25
1/2"
​NPT
-
VL-S-B2-N-1000-08
15
62
49
104
0.30
3/4"
​NPT
-
VL-S-B2-N-1000-12
20
70
55
118
0.51
1"
​NPT
-
VL-S-B2-N-1000-16
25
81
67
145
0.75
1  1/4"
​NPT
-
VL-S-B2-N-1000-20
32
95
70
145
1.48
1  1/2"
​NPT
-
VL-S-B2-N-1000-24
38
105
80
177
1.72
2"
​NPT
-
VL-S-B2-N-1000-32
50
117
92
177
3.08
2  1/2"
​NPT
-
VL-S-B2-N-1000-40
65
163
113
224
4.85
3"
​NPT
-
VL-S-B2-N-1000-48
80
190
127
242
7.53
4"
​NPT
-
VL-S-B2-N-1000-64
96
227
180
280
13.5

​Dimension List (2000 PSI)

NPS
Connection
IMPA Code
Part No
d
L
H
E
Weight (kg)
1/4"
BSPP
75 66 65
VL-S-B2-G-2000-04
10
6
42
95
0.21
3/8"
BSPP
75 66 66
VL-S-B2-G-2000-06
12
55
42
95
0.25
1/2"
BSPP
75 66 67
VL-S-B2-G-2000-08
15
62
51
108
0.30
3/4"
 BSPP
75 66 68
VL-S-B2-G-2000-12
20
72
58
115
0.51
1"
BSPP
75 66 69
VL-S-B2-G-2000-16
25
84
77
135
0.75
1  1/4"
 BSPP
75 66 70
VL-S-B2-G-2000-20
32
97
83
150
1.48
1  1/2"
BSPP
75 66 71
VL-S-B2-G-2000-24
38
104
97
175
1.72
2"
BSPP
 75 66 72
VL-S-B2-G-2000-32
50
120
106
190
3.08
2  1/2"
BSPP
75 66 73
VL-S-B2-G-2000-40
65
150
122
220
4.85
3"
BSPP
75 66 74
VL-S-B2-G-2000-48
80
164
140
250
7.53
​1/4"
​NPT
75 65 89
VL-S-B2-N-2000-04
10
55
42
95
0.21
​3/8"
​NPT
​​75 65 90
VL-S-B2-N-2000-06
10
55
42
95
0.25
​1/2"
​NPT
​75 65 91
VL-S-B2-N-2000-08
15
62
51
108
0.30
​3/4"
​NPT
​75 65 92
VL-S-B2-N-2000-12
20
72
58
115
0.51
​1"
​NPT
​75 65 93
VL-S-B2-N-2000-16
25
84
77
135
0.75
​1  1/4"
​NPT
​75 65 94
VL-S-B2-N-2000-20
32
97
83
150
1.48
​1  1/2"
​NPT
​75 65 95
VL-S-B2-N-2000-24
38
104
97
175
1.72
​2"
​NPT
​75 65 96
VL-S-B2-N-2000-32
49
120
106
190
3.08
​2  1/2"
​NPT
​75 65 97
VL-S-B2-N-2000-40
63
150
122
220
4.85
​3"
​NPT
75 65 98
VL-S-B2-N-2000-48
80
164
140
250
7.53

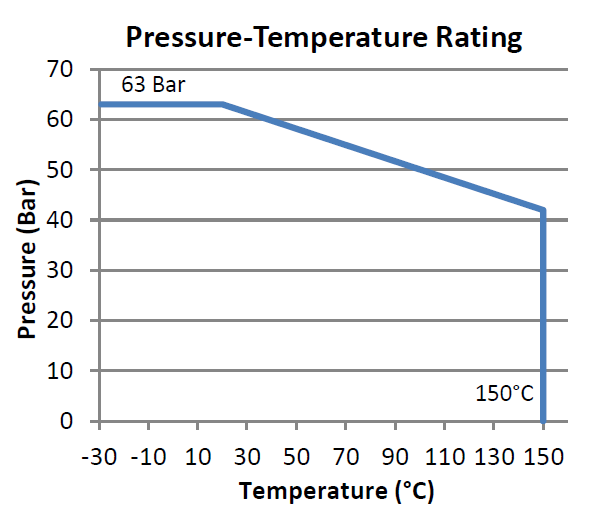

Pressure-Temperature Rating

Pressure-Temperature Rating

2 Piece Ball Valve Catalogue

2 PIECE BALL VALVE PDF

Conditions of Use of Catalogue​
​
Specifications of the Products or other information on the subject of the agreement serve only as a description and include no guarantee on their condition. Deviations from these specifications are not considered as defects as long as they remain within the frame of the state-of-the-art permitted and as long as their functionality is not considerably affected.

Ask a Question

​QUICK LINKS

​Home     About Us     Products     Catalogues     Contact     FAQ     Terms & Conditions

GET IN TOUCH WITH US

Vertical Divider
RFS HYDRAULICS

STAY CONNECTED WITH US

© 2023 RFS Hydraulics Sdn Bhd. All rights reserved.
  • About
    • Core Values
  • Brands
    • Stauff
    • RFS Hydraulics
    • MHA Zentgraf
    • Eaton
    • AF Hydro
    • Oleo Tecnica
    • Inteva
    • Both-well
    • KPL Industry
  • Products
    • Pipes and Tubes >
      • Stainless Steel Tubes
      • Stainless Steel Pipes
      • Hydraulic Steel Tubes
      • Copper Pipes
      • Copper Coils
      • Walform Tube
    • Pipe Clamps >
      • Stauff Clamps
      • Tubeclo Tube Clamps
      • Stauff Anti Corrosion Clamps
      • Tubeclo Rubber Insert Clamps
    • Flanges >
      • Hydraulic SAE Flanges
      • Square Flanges
    • High Pressure Valves >
      • High Pressure Ball Valves
      • SAE Flange Check Valves
      • Needle Valves
      • SAE Flange End Ball Valves
      • High Pressure Check Valves
      • ISO 6164 Ball Valves
    • High Pressure Fittings >
      • Compression Fittings
      • Ferrule Fittings
      • Forged Pipe Fittings
      • JIC Fittings
      • Quick Release Couplings
      • Pipe Adapter Fittings
    • Low Pressure Valves >
      • Ball Valves >
        • 1 Piece Ball Valve
        • 2 Piece Ball Valve
        • 3 Piece Ball Valve
        • L-Port Ball Valve
        • T-Port Ball Valve
        • Brass Ball Valve
        • Brass Mini Ball Valve
        • Stainless Steel Mini Ball Valve
      • Flange End Ball Valves >
        • PN10/16 SS316 Flange End Ball Valve
        • ANSI 150# SS316 Flange End Ball Valve
        • ANSI 300# SS316 Flange End Ball Valve
        • JIS 10K SS316 Flange End Ball Valve
        • ANSI 150# Cast Steel Flange End Ball Valve
        • ANSI 300# Cast Steel Flange End Ball Valve
      • Swing Check Valves >
        • ANSI 150# SS316 Swing Check Valves
        • JIS 10K SS316 Swing Check Valves
        • ANSI 150# Cast Steel Swing Check Valve
        • Threaded End SS316 Swing Check Valves
        • Threaded End Brass Swing Check Valves
      • Single Plate Check Valves
      • Dual Plate Check Valves
      • Spring Check Valves
      • Y-Strainers >
        • ANSI 150# SS316 Y-strainer
        • JIS 10K SS316 Y-strainer
        • Threaded End SS316 Y-strainer
        • ANSI 150# Cast Steel Y-strainer
        • JIS 10K Cast Steel Y-strainer
      • Gate Valves >
        • ANSI SS316 150# Gate Valve
        • JIS 10K SS316 Gate Valve
        • Threaded End SS316 Gate Valve (200 PSI)
        • Threaded End SS316 Gate Valve (800 PSI)
        • ANSI 150# Cast Iron Gate Valve
        • JIS 10K Cast Iron Gate Valve
        • ANSI 150# Cast Steel Gate Valve
        • ANSI 150# Forged Steel Gate Valve
        • Threaded End Forged Steel Gate Valve
        • Welded End Forged Steel Gate Valve
      • Globe Valves >
        • ANSI 150# SS316 Globe Valve
        • JIS 10K SS316 Globe Valve
        • Threaded End SS316 Globe Valve (200 PSI)
        • Threaded End SS316 Globe Valve (800 PSI)
        • ANSI 150# Cast Iron Globe Valve
        • JIS 10K Cast Iron Globe Valve
        • ANSI 150# Cast Steel Globe Valve
        • ANSI 150# Forged Steel Globe Valve
        • Threaded End Forged Steel Globe Valve
        • Welded End Forged Steel Globe Valve
      • Butterfly Valves >
        • ANSI 150# Cast Iron Butterfly Valve
    • Low Pressure Fittings >
      • Class 150 Fittings
      • Camlock Fittings
    • Accessories >
      • Pressure Gauges
      • Stauff Test Couplings
      • Walform Machine
      • GS Retain Ring
      • Anti-bloc Fett
      • Stauff Tube Clean Systems
      • Dowty Seals
      • Stauff Level Gauge
      • Stauff Filler Breathers
  • Catalogues
    • Pipes and Tubes
    • Pipe Clamps
    • Flanges
    • High Pressure Valves
    • High Pressure Fittings
    • Low Pressure Valves
    • Low Pressure Fittings
    • Accessories
  • Contact
  • MYREWARDS
    • MYFAQ
