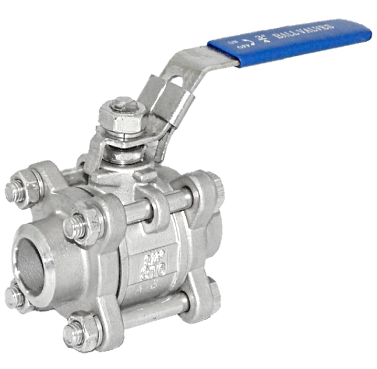

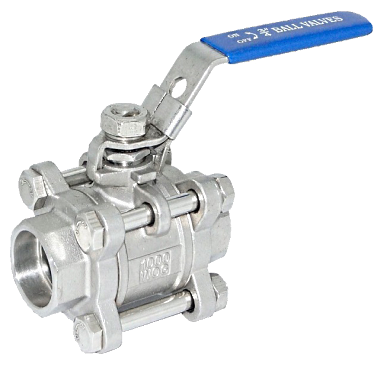

3 Piece Ball Valve

Size
  • ​1/4” – 4" (DN8-100)
Material
  • Stainless Steel SS316
​Working Pressure
  • 1000 PSI
Connection Type
  • BSPP
  • NPT
  • Socket Welding End
CATALOGUE :

3 Piece Ball Valve​

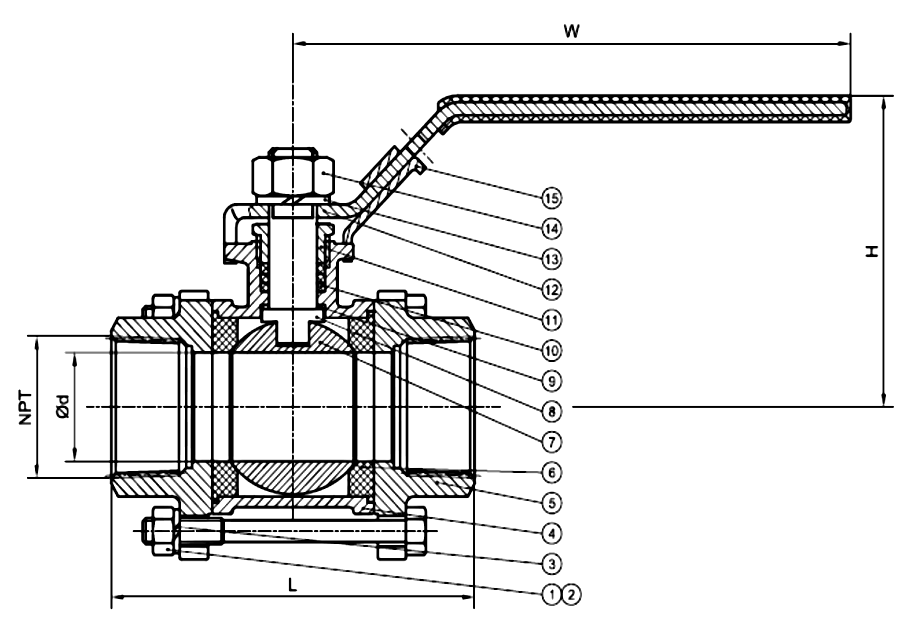

3 Piece Full Bore 1000 PSI Stainless Steel Threaded / Socket Weld End Ball Valve

3 Piece Full Bore 1000 PSI Stainless Steel Threaded / Socket Weld End Ball Valve Drawing
3 Piece Full Bore 1000 PSI Stainless Steel Threaded / Socket Weld End Ball Valve Drawing
No
Part Name
Material
1
Body
SS316 & CF8M
2
Cap
SS316
3
Seat
PTFE
4
Ball
SS316
5
Seal Gasket
​PTFE
6
Stem Seal
PTFE
7
Stem
SS316
8
Anti- Static Device
SS304
9
Stem Packing
​PTFE
10
Packing Gland
SS304
11
Spring Washer
SS301
12
Handle
SS201
13
Stem Nut
SS304

Dimension List

NPS
Connection
IMPA Code
Part No
d
L
H
E
PCD
Weight (kg)
1/4"
BSPP
-
VL-S-B1-G-1000-04
10
66
45
100
-
​0.30
3/8"
BSPP
-
VL-S-B1-G-1000-06
12
66
45
100
​-
​0.30
1/2"
BSPP
-
VL-S-B1-G-1000-08
15
73
53
104
33
​0.51
3/4"
 BSPP
-
VL-S-B1-G-1000-12
20
79.5
58
118
39.5
​0.73
1"
BSPP
-
VL-S-B1-G-1000-16
25
86.5
68
145
43.5
0.91
1  1/4"
 BSPP
-
VL-S-B1-G-1000-20
32
108
81
162
55.5
​1.56
1  1/2"
BSPP
-
VL-S-B1-G-1000-24
38
118
85
180
60
​1.86
2"
BSPP
-
VL-S-B1-G-1000-32
50
144
92
180
​75
​2.98
2  1/2"
BSPP
​-
VL-S-B1-G-1000-40
65
180
115
242
94
​6.65
3"
BSPP
-
VL-S-B1-G-1000-48
80
209
130
242
100
​10.07
4"
​BSPP
-
VL-S-B1-G-1000-64
-
-
-
-
​123
17.79
1/4"
​NPT
-
VL-S-B1-N-1000-04
10
66
45
100
-
0.30
3/8"
​NPT
​-
VL-S-B1-N-1000-06
12
66
45
100
-
0.30
1/2"
​NPT
-
VL-S-B1-N-1000-08
15
73
53
104
33
0.51
3/4"
​NPT
-
VL-S-B1-N-1000-12
20
79.5
58
118
39.5
0.73
1"
​NPT
-
VL-S-B1-N-1000-16
25
86.5
68
145
43.5
0.91
1  1/4"
​NPT
-
VL-S-B1-N-1000-20
32
108
81
162
55.5
1.56
1  1/2"
​NPT
-
VL-S-B1-N-1000-24
38
118
85
180
60
1.86
2"
​NPT
-
VL-S-B1-N-1000-32
50
144
92
180
75
2.98
2  1/2"
​NPT
-
VL-S-B1-N-1000-40
65
180
115
224
94
6.65
 3"
​NPT
​-
VL-S-B1-N-1000-48
80
209
130
242
100
10.07
4"
​NPT
-
VL-S-B1-N-1000-64
-
-
-
-
123
17.79
​1/4"
SW
-
​VL-S-B3-SW-1000-04
10
66
45
100
-
0.30
​3/8"
​SW
-
VL-S-B3-SW-1000-06
12
66
45
100
-
0.30
​1/2"
​SW
-
VL-S-B3-SW-1000-08
15
73
53
104
33
0.51
​3/4"
​SW
-
VL-S-B3-SW-1000-12
20
79.5
58
118
39.5
0.73
1"
​SW
-
VL-S-B3-SW-1000-16
25
86.5
68
145
43.5
0.91
1  1/4"
​SW
-
VL-S-B3-SW-1000-20
32
108
81
162
55.5
1.55
​1  1/2"
​SW
-
VL-S-B3-SW-1000-24
38
118
85
180
60
1.85
​2"
​SW
-
VL-S-B3-SW-1000-32
50
144
92
180
75
2.98
​2  1/2"
SW
​-
VL-S-B3-SW-1000-40
65
180
115
224
94
3.54
3"
​SW
-
VL-S-B3-SW-1000-48
80
209
130
242
100
6.38
4"
​SW
-
VL-S-B3-SW-1000-64
-
-
-
-
123
-

Pressure-Temperature Rating

Pressure-Temperature Rating

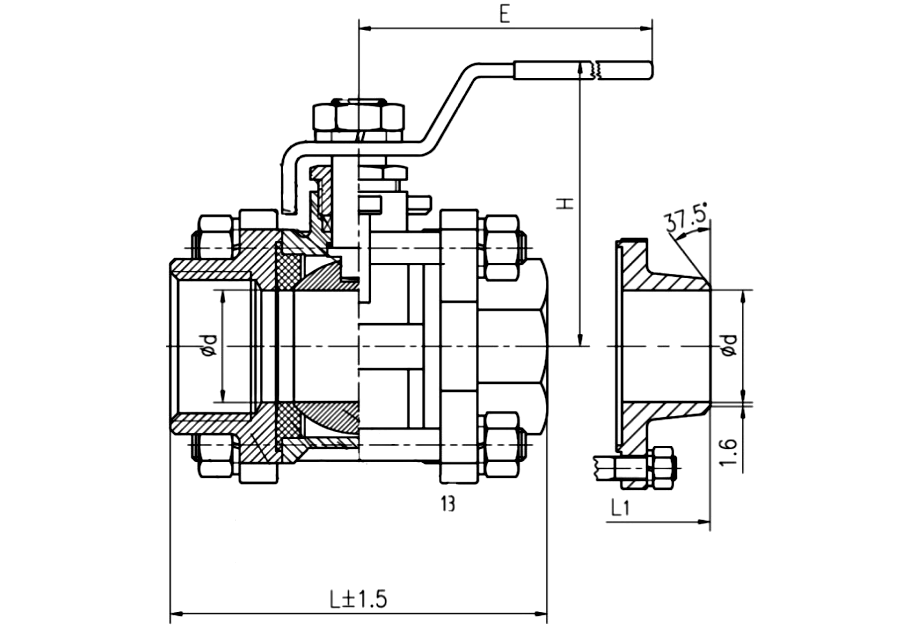

3 Piece Full Bore 1000 PSI Stainless Steel Butt Weld End Ball Valve

3 Piece Full Bore 1000 PSI Stainless Steel Butt Weld End Ball Valve Drawing
3 Piece Full Bore 1000 PSI Stainless Steel Butt Weld End Ball Valve Drawing
No
Part Name
Material
1
Body
SS316 & CF8M
2
Cap
SS316
3
Ball
SS316
4
Seal
 ​PTFE​
5
Bolt
SS304
6
Gasket
SS301
7
Stem Nut
SS304
8
Stem Seal
PTFE
9
Stem
SS316
10
Packing
PTFE
11
​Packing Gland
SS304
12
Handle
SS201
13
​Spring Washer
SS301
​14
​Stem Nut
SS304

Dimension List

NPS
Connection
IMPA Code
Part No
d
L
H
W
PCD
Weight (kg)
3/8"
BW
-
VL-S-B3-BW-1000-06
12.5
66
45
-
-
-
​1/2"
BW
-
VL-S-B3-BW-1000-08
15
74
50
26
33
0.57
​3/4"
BW
-
VL-S-B3-BW-1000-12
20
79
60
30.5
39.5
​0.51
​1"
BW
-
VL-S-B3-BW-1000-16
25
88
65
36
43.5
​0.73
​1  1/4"
BW
-
VL-S-B3-BW-1000-20
32
108
85
48
55.5
0.91
​1  1/2"
BW
-
VL-S-B3-BW-1000-24
38
119
85
54
60
​1.56
​2"
BW
-
VL-S-B3-BW-1000-32
49
143
95
68
75
​1.86
​2  1/2"
BW
-
VL-S-B3-BW-1000-40
65
180
92
86
94
​-
3"
BW
​-
VL-S-B3-BW-1000-48
78
209
130
100
100
-
4"
BW
-
VL-S-B3-BW-1000-64
98
260
157
121
123
​-

​Pressure-Temperature Rating

Pressure-Temperature Rating

3 Piece Ball Valve Catalogue

3 PIECE BALL VALVE PDF

Conditions of Use of Catalogue​
​
Specifications of the Products or other information on the subject of the agreement serve only as a description and include no guarantee on their condition. Deviations from these specifications are not considered as defects as long as they remain within the frame of the state-of-the-art permitted and as long as their functionality is not considerably affected.

Ask a Question

​QUICK LINKS

​Home     About Us     Products     Catalogues     Contact     FAQ     Terms & Conditions

GET IN TOUCH WITH US

Vertical Divider
RFS HYDRAULICS

STAY CONNECTED WITH US

© 2024 RFS Hydraulics Sdn Bhd. All rights reserved.
  • About
    • Core Values
    • ISO Certified
    • Authorised Distributor
  • Brands
    • Tubeclo
    • Stauff
    • RFS Hydraulics
    • MHA Zentgraf
    • Eaton
    • AF Hydro
    • Oleo Tecnica
    • Inteva
    • Both-well
    • KPL Industry
  • Products
    • Pipes and Tubes >
      • Stainless Steel Tubes
      • Stainless Steel Pipes
      • Hydraulic Steel Tubes
      • Copper Pipes
      • Copper Coils
      • Walform Tube
    • Pipe Clamps >
      • Stauff Clamps
      • Tubeclo Tube Clamps
      • Stauff Anti Corrosion Clamps
      • Tubeclo Rubber Insert Clamps
    • Flanges >
      • Hydraulic SAE Flanges
      • Square Flanges
    • High Pressure Valves >
      • High Pressure Ball Valves
      • SAE Flange Check Valves
      • Needle Valves
      • SAE Flange End Ball Valves
      • High Pressure Check Valves
      • ISO 6164 Ball Valves
    • High Pressure Fittings >
      • Compression Fittings
      • Ferrule Fittings
      • Forged Pipe Fittings
      • JIC Fittings
      • Quick Release Couplings
      • Pipe Adapter Fittings
    • Low Pressure Valves >
      • Ball Valves >
        • 1 Piece Ball Valve
        • 2 Piece Ball Valve
        • 3 Piece Ball Valve
        • L-Port Ball Valve
        • T-Port Ball Valve
        • Brass Ball Valve
        • Brass Mini Ball Valve
        • Stainless Steel Mini Ball Valve
      • Flange End Ball Valves >
        • PN10/16 SS316 Flange End Ball Valve
        • ANSI 150# SS316 Flange End Ball Valve
        • ANSI 300# SS316 Flange End Ball Valve
        • JIS 10K SS316 Flange End Ball Valve
        • ANSI 150# Cast Steel Flange End Ball Valve
        • ANSI 300# Cast Steel Flange End Ball Valve
      • Swing Check Valves >
        • ANSI 150# SS316 Swing Check Valves
        • JIS 10K SS316 Swing Check Valves
        • ANSI 150# Cast Steel Swing Check Valve
        • Threaded End SS316 Swing Check Valves
        • Threaded End Brass Swing Check Valves
      • Single Plate Check Valves
      • Dual Plate Check Valves
      • Spring Check Valves
      • Y-Strainers >
        • ANSI 150# SS316 Y-strainer
        • JIS 10K SS316 Y-strainer
        • Threaded End SS316 Y-strainer
        • ANSI 150# Cast Steel Y-strainer
        • JIS 10K Cast Steel Y-strainer
      • Gate Valves >
        • ANSI SS316 150# Gate Valve
        • JIS 10K SS316 Gate Valve
        • Threaded End SS316 Gate Valve (200 PSI)
        • Threaded End SS316 Gate Valve (800 PSI)
        • ANSI 150# Cast Iron Gate Valve
        • JIS 10K Cast Iron Gate Valve
        • ANSI 150# Cast Steel Gate Valve
        • ANSI 150# Forged Steel Gate Valve
        • Threaded End Forged Steel Gate Valve
        • Welded End Forged Steel Gate Valve
      • Globe Valves >
        • ANSI 150# SS316 Globe Valve
        • JIS 10K SS316 Globe Valve
        • Threaded End SS316 Globe Valve (200 PSI)
        • Threaded End SS316 Globe Valve (800 PSI)
        • ANSI 150# Cast Iron Globe Valve
        • JIS 10K Cast Iron Globe Valve
        • ANSI 150# Cast Steel Globe Valve
        • ANSI 150# Forged Steel Globe Valve
        • Threaded End Forged Steel Globe Valve
        • Welded End Forged Steel Globe Valve
      • Butterfly Valves >
        • ANSI 150# Cast Iron Butterfly Valve
    • Low Pressure Fittings >
      • Class 150 Fittings
      • Camlock Fittings
    • Accessories >
      • Pressure Gauges
      • Stauff Test Couplings
      • Walform Machine
      • GS Retain Ring
      • Bonded Seals
      • Stauff Tube Clean Systems
      • Dowty Seals
      • Stauff Level Gauge
      • Stauff Filler Breathers
      • Anti-bloc Fett
  • Catalogues
    • Pipes and Tubes
    • Pipe Clamps
    • Flanges
    • High Pressure Valves
    • High Pressure Fittings
    • Low Pressure Valves
    • Low Pressure Fittings
    • Accessories
  • Contact
  • MYREWARDS
    • MYFAQ
  • RFS Blog
