ANSI 150# Cast Iron Butterfly Valve

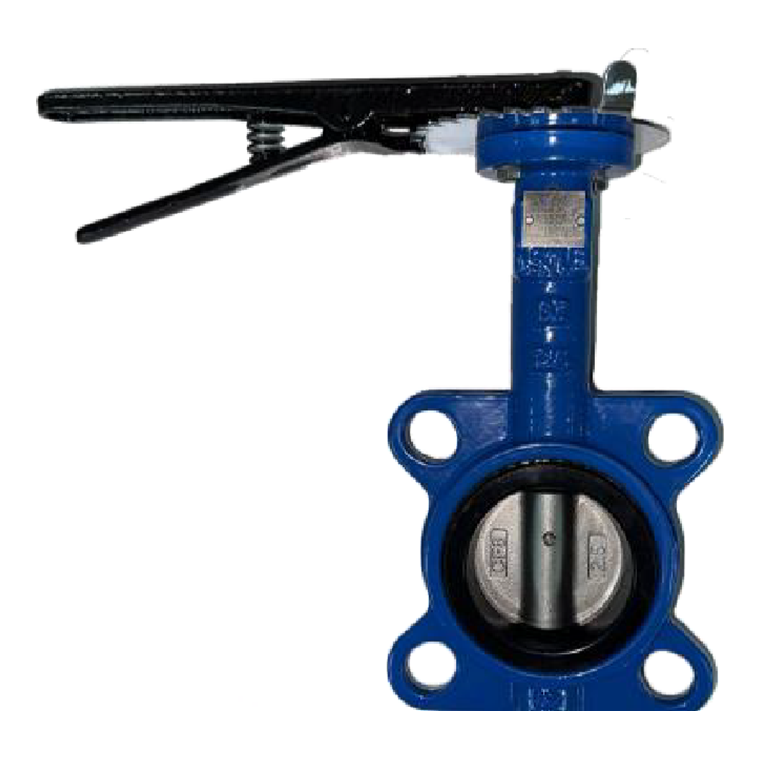

ANSI 150# Cast Iron Wafer Type Butterfly Valve
ANSI 150# Cast Iron Wafer Type Butterfly Valve
Vertical Divider

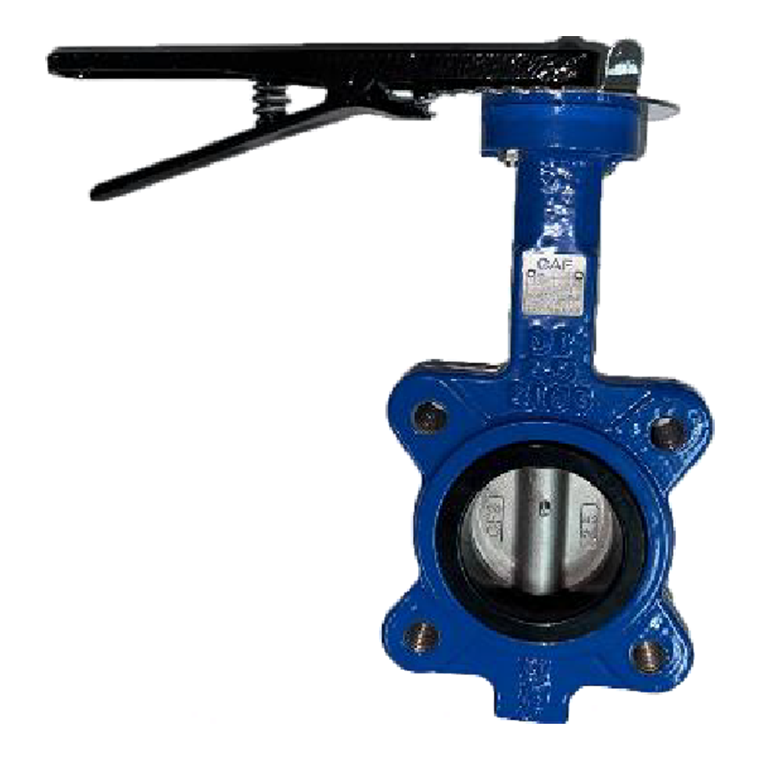

ANSI 150# Cast Iron Lug Type Butterfly Valve
ANSI 150# Cast Iron Lug Type Butterfly Valve
​Size
  • ​1  1/2" – 6" (DN40-150)
Material
  • ​Cast Iron
Working Pressure
  • ​150 PSI
Connection Type
  • ANSI 150# Wafer Type Connection
  • ANSI 150# Lug Type Connection
CATALOGUE :

​​​​​ANSI 150# Cast Iron Wafer Type Butterfly Valves​

​​​​​ANSI 150# Cast Iron Lug Type Butterfly Valves​


ANSI 150# Cast Iron Wafer Type Butterfly Valve

ANSI Cast Iron 150# Butterfly Valve

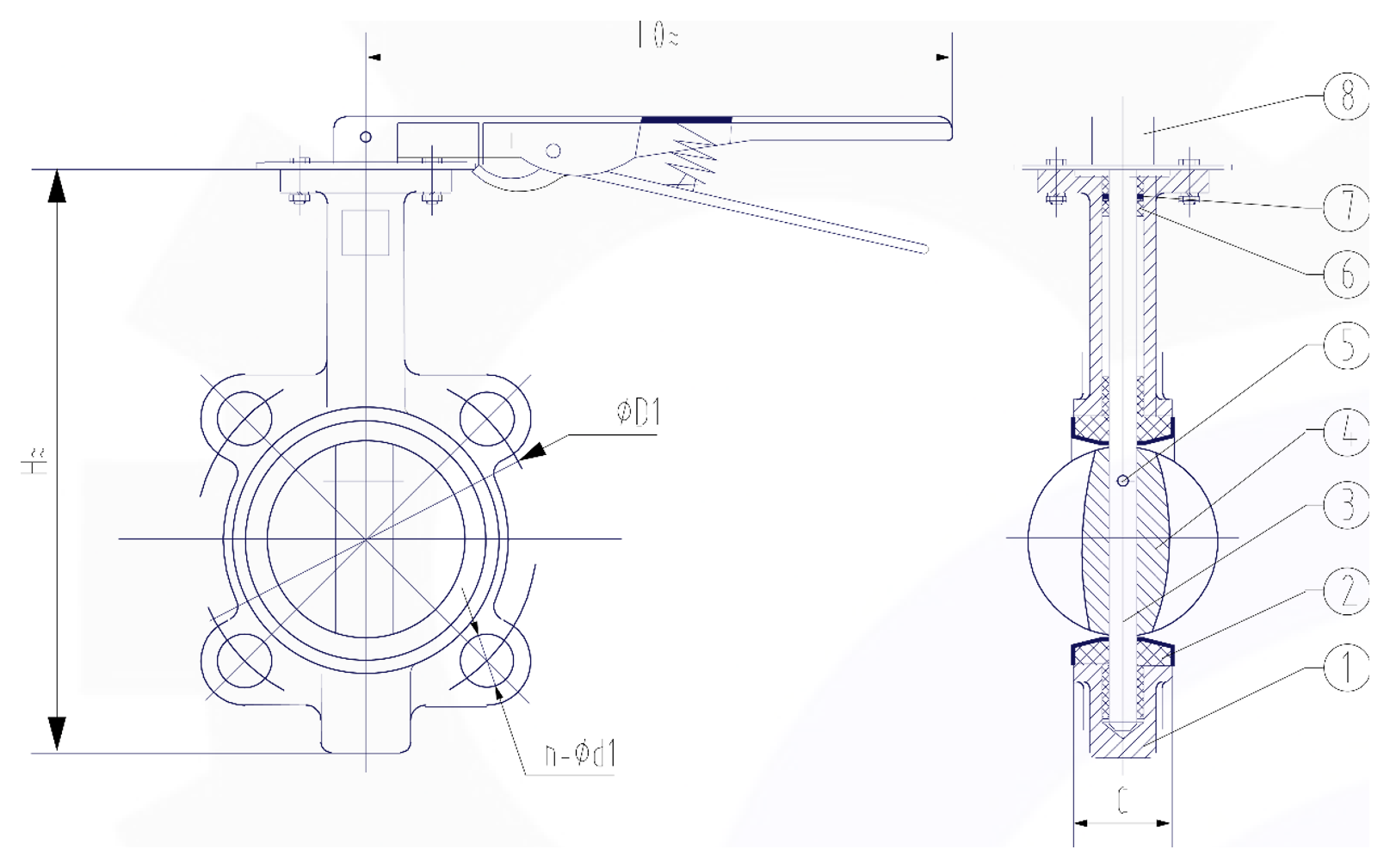

Wafer Type Butterfly Valve Drawing
No
Part Name
Material
1
Body
Cast Iron
2
Seat
EPDM
3
Shaft
SS410
4
Disc
CF8
5
Pin
SS304
6
Bushing
Polymers
7
Oring
NBR
8
Handle Lever
Ductile Iron

Dimension List

Size
(DN)
Size
​(IN)
H
C
L
P
L0
Upper Flange
(K)
Upper Flange
(E)
Upper Flange
(z-d)
Upper Flange
(g)
Upper Flange
(h)
ANSI 150
​(D1)
ANSI 150
​(n-d1)
40
1  1/2"
220
33.4
28
9
220
65
50
4-7
35
2.2
95
4-16
50
2"
242
42.7
25
9​
220
​65
50
​4-7
35
​2.2
100.5
4-19
65
​2  1/2"
265
45
27
9
220
​65
50
4-7​
​35
​2.2
120
4-19
80
3"
280
45.3
24
9
220
​65
50
​4-7
​35
​2.2
127
4-19
100
4"
315
51.5
24
11
255
​90
70
4-9
​35
​2.2
158
4-19
125
5"
342
54.5
​26.7
14
260
90
70
4-9
35
​2.2
186
4-22
150
6"
374
55.5
26
14
260
​90
70
4-9
35
2.2
214
4-22

​Main Technical Parameter

Normal Pressure
1.6 MPa
​Shell Test Pressure
2.4 MPa
Sealing Test Pressure
1.76 MPa
Working Temperature
-30°C to 120°C

Technical Specifications

Basic design and manufacture according to API 609
Face to face dimension: API609
​Inspection and test: API 598

ANSI 150# Cast Iron Lug Type Butterfly Valve

Lug Type Butterfly Valve Drawing
Lug Type Butterfly Valve Drawing
No
Part Name
Material
1
Body
Cast Iron
2
Seat
EPDM
3
Shaft
SS410
4
Disc
CF8
5
Pin
SS304
6
Bushing
Polymers
7
Oring
NBR
8
Handle Lever
Ductile Iron

Dimension List

Size
(DN)
Size
​(IN)
H
C
L
P
L0
Upper Flange
(K)
Upper Flange
(E)
Upper Flange
(z-d)
Upper Flange
(g)
Upper Flange
(h)
ANSI 150
​(D1)
ANSI 150
​(n-M)
40
1  1/2"
214
33.4
24
9
220
65
50
4-7
35
2.2
99
4-1/2"
50
2"
242
35
27
9​
220
​65
50
​4-7
35
​2.2
100
4-5/8"
65
​2  1/2"
265
45
24
9
220
​65
50
4-7​
​35
​2.2
121
4-5/8"
80
3"
278
45.5
24
9
220
​65
50
​4-7
​35
​2.2
127
4-5/8"
100
4"
315
51
25
11
255
​90
70
4-9
​36
​2.2
162
8-5/8"
125
5"
343
54
25
14
260
90
70
4-9
​36
​2.2
185
8-3/4"
150
6"
369
55
27
14
260
​90
70
4-9
​36
2.2
214
8-3/4"

Main Technical Parameter

Normal Pressure
1.6 MPa
​Shell Test Pressure
2.4 MPa
Sealing Test Pressure
1.76 MPa
Working Temperature
-30°C to 120°C

​Technical Specifications

Basic design and manufacture according to API 609
Face to face dimension: API609
​Inspection and test: API 598

ANSI 150# Cast Iron Butterfly Valve Catalogue

ANSI 150# CAST IRON BUTTERFLY VALVE WAFER TYPE PDF
    ANSI 150# CAST IRON BUTTERFLY VALVE lug TYPE PDF

Conditions of Use of Catalogue​
Specifications of the Products or other information on the subject of the agreement serve only as a description and include no guarantee on their condition. Deviations from these specifications are not considered as defects as long as they remain within the frame of the state-of-the-art permitted and as long as their functionality is not considerably affected.
