ANSI 150# Cast Iron Gate Valve

​Size
  • 2” – 6” (DN50 – DN150)
Material
  • ​Cast Iron
Working Pressure
  • ​150#
Connection Type
  • ANSI 150# Flange Connection
ANSI 150# Cast Iron Gate Valve Catalogue
ANSI 150# Cast Iron Gate Valve.pdf
File Size: 185 kb
File Type: pdf
Download File

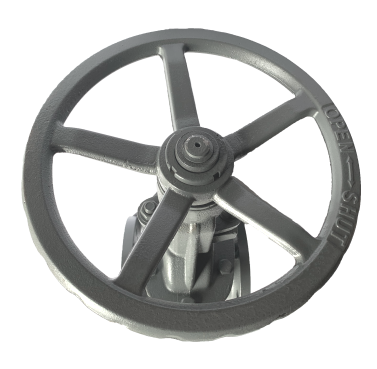

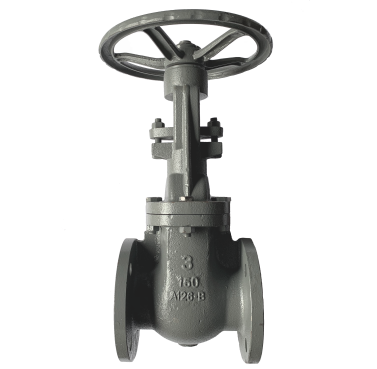

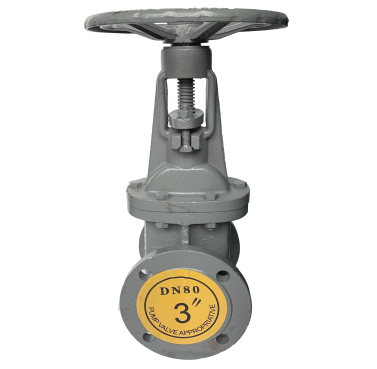

ANSI 150# Cast Iron Gate Valve

ANSI 150# Cast Iron Gate Valve Drawing
ANSI 150# Cast Iron Gate Valve Drawing
No
Part Name
Material
1
Body
A126 B Cast Iron
2
Wedge
A126 B Cast Iron
3
Stem
A276 SS304
4
Bolts
A29 1035
5
Nuts
A29 1025
6
Gasket
SS304 + Graphite
7
Bonnet
A126 B Cast Iron
8
Packing
​Flexible Graphite
9
Pin
A29 1045
10
Packing Gland
A276 SS304
11
Gland Flange
A126 B Cast Iron
12
Eye Bolts
A29 1035
13
Nuts
A29 1025
14
Stem Nut
A276 SUS410
15
Cover
A29 1025
16
Handwheel
A47 32510 Malleable Iron
17
Nut
A29 1025

Dimension List

NPS
Part No
d
L
O
W
R
​n – Øz
t
f
2"
VL-CI-GA-F-150-32
50
178
152
120
92.1
​4-Ø19
15.5
2
2  1/2"
VL-CI-GA-F-150-40
65
190
178
139
104.8
​4-Ø19
16.6
2
3"
VL-CI-GA-F-150-48
80
204
190
150
127
​4-Ø19
18
2
4"
​VL-CI-GA-F-150-64
100
229
227
190
157.2
​​8-Ø19
22.5
2
5"
​VL-CI-GA-F-150-80
125
254
254
216
-
​​8-Ø22
23.9
2
6"
VL-CI-GA-F-150-96
150
270
279
241.5
-
​​8-Ø22
25.4
2

Main Technical Parameter

Normal Pressure
150#
Hydraulic Body Test
2.06 MPa
​Seal Test
1.57 MPa
Hermetical Seal Test
0.6 MPa

ANSI 150# Cast Iron Gate Valve Catalogue

Conditions of Use of Catalogue​
Specifications of the Products or other information on the subject of the agreement serve only as a description and include no guarantee on their condition. Deviations from these specifications are not considered as defects as long as they remain within the frame of the state-of-the-art permitted and as long as their functionality is not considerably affected.
