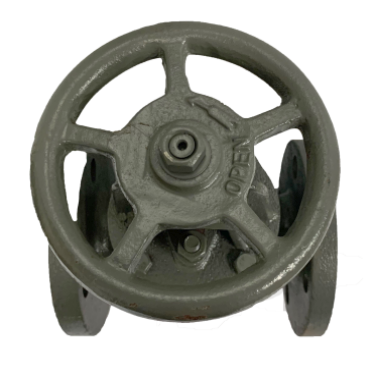

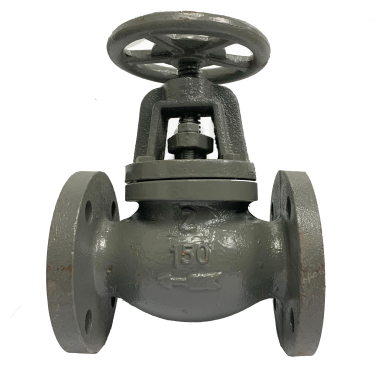

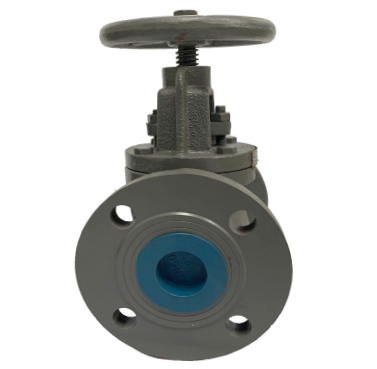

ANSI 150# Cast Iron Globe Valve

ANSI 150# Cast Iron Globe Valve
ANSI 150# Cast Iron Globe Valve
ANSI 150# Cast Iron Globe Valve
​Size
  • 2" – 4" (DN50 – DN100)
  • 5" – 6" (DN125 – DN150)
Material
  • ​Cast Iron
Working Pressure
  • ​150#
Connection Type
  • ANSI 150#​ Flange Connection
CATALOGUE :

​​​​ANSI 150# Cast Iron Globe Valve​


ANSI 150# Cast Iron Globe Valve 2" – 4" (DN50 – DN100)

ANSI Cast Iron 150# Globe Valve 2

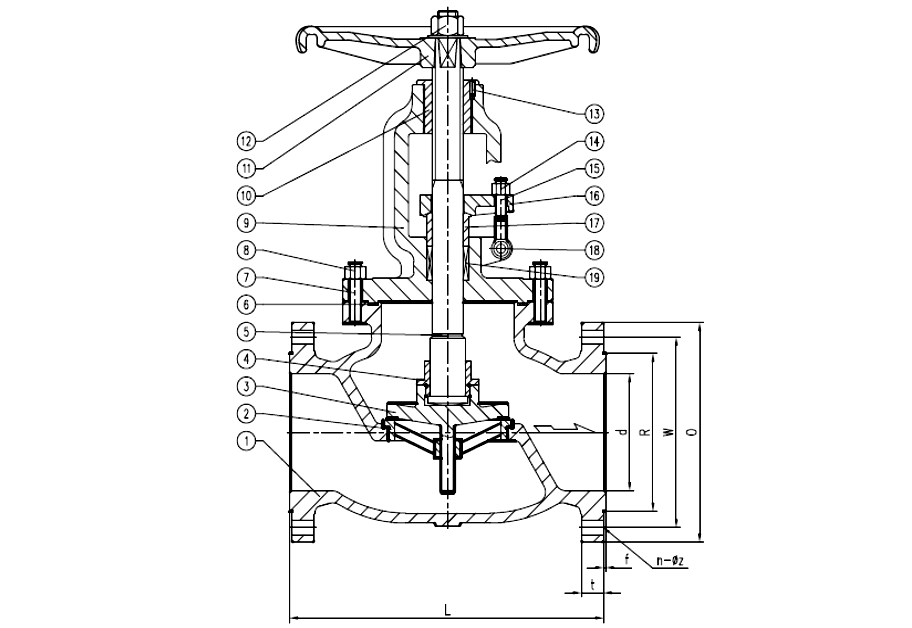

ANSI 150# Cast Iron Globe Valve 2" – 4" (DN50 – DN100) Drawing
No
Part Name
Material
1
Body
A126 B Cast Iron
2
Seat
A126 B Cast Iron
3
Disc
A126 B Cast Iron
4
Cover
A29 1025
5
Stem
A276 SUS410
6
Gasket
SS304 + Graphite
7
Bolts
A29 1035
8
Nuts
A29 1025
9
Bonnet
​A126 B Cast Iron
10
Stem Nut
A276 SUS410
11
Handwheel
​A47 32510 Malleable Iron
12
Nut
​​A29 1025
13
Screw
SS304
14
Nut
​​A29 1025
15
Bolt
​A29 1035
16
Gland Flange
​A126 B Cast Iron
17
Packing Gland
​A276 SUS410
18
Pin
​​​A29 1025
19
Packing
Flexible Graphite

Dimension List

NPS
Part No
d
L
O
W
R
n – Øz
t
f
2"
VL-CI-GL-F-150-32
50
200
152
120.7
92.1
4-Ø19
15.9
2
2  1/2"
VL-CI-GL-F-150-40
65
216
178
139.5
104.8
​4-Ø19
17.5
2
​3"
VL-CI-GL-F-150-48
80
240
190
152.5
127
​4-Ø19
19.1
2
4"
VL-CI-GL-F-150-64
100
292
229
190.5
157.2
8-Ø19
23.9
2

Main Technical Parameter

Normal Pressure
150#
Hydraulic Body Test Pressure
2.06 MPa
Seal Test Pressure
1.57 MPa
Hermetical Sealing Test
0.6 MPa

Technical Specification

Basic design and manufacture according to ASME B16.10
Face to face dimension: ASME B16.10
Flange End: ASME B16.5
Inspection and test: API 598

​ANSI 150# Cast Iron Globe Valve 5" –6" (DN125 – DN150)

​ANSI Cast Iron 150# Globe Valve 5

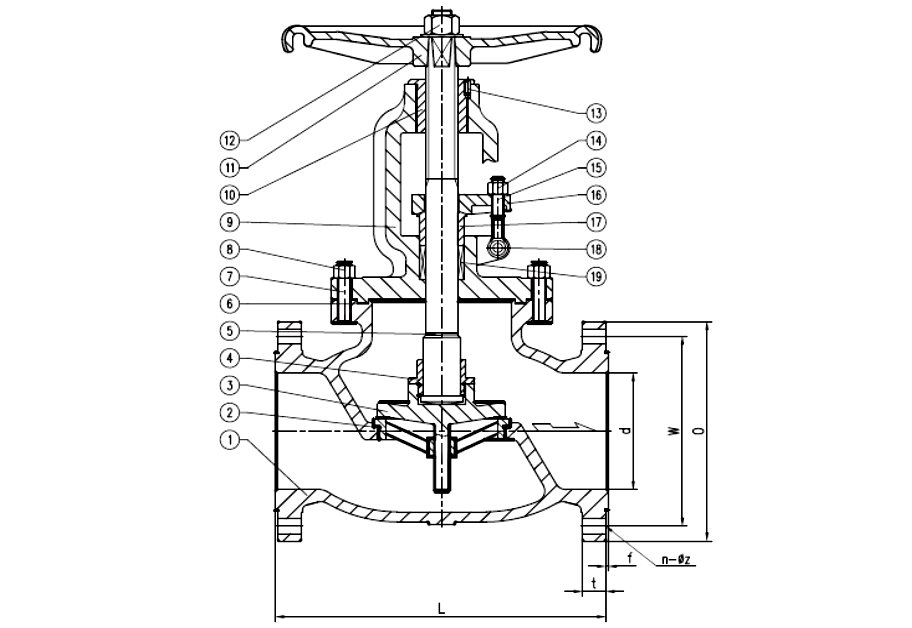

​ANSI 150# Cast Iron Globe Valve 5" – 6" (DN125 – DN150) Drawing
No
Part Name
Material
1
Body
ASTM A126 B
2
Seat
ASTM A126 B + SS304
3
Disc
ASTM A126 B + SS304
4
Cover
ASTM A29 1025
5
Stem
ASTM A276 SUS410
6
Gasket
SS304 + Graphite
7
Bolts
ASTM A29 1035
8
Nuts
ASTM A29 1025
9
Bonnet
ASTM A126 B
10
Stem Nut
ASTM A276 410
11
Handwheel
ASTM A47 32510
12
Nut
ASTM A29 1025
13
Screw
SS304
14
Nut
ASTM A29 1025
15
Bolt
ASTM A29 1035
16
Gland Flange
ASTM A126 B
17
Packing Gland
ASTM A276 410
18
Pin
ASTM A29 1025
19
Packing
Flexible Graphite

Dimension List

NPS
Part No
d
L
O
W
​n – Øz
t
f
5"
VL-CI-GL-F-150-80
125
330
254
216
8-Ø22
23.9
2
6"
VL-CI-GL-F-150-96
150
355
241.5
241.5
​8-Ø22
25.4
2

Main Technical Parameter

Normal Pressure
150#
Hydraulic Body Test Pressure
2.06 MPa
Seal Test Pressure
1.57 MPa
Hermetical Sealing Test
0.6 MPa
Max Working Pressure
≤ 429°C

Technical Specification

Basic design and manufacture according to ASME B16.10
Face to face dimension: ASME B16.10
Flange End: ASME B16.5
Inspection and test: API 598

ANSI 150# Cast Iron Globe Valve Catalogue

ansi 150# cast iron globe valve pdf

Conditions of Use of Catalogue​
Specifications of the Products or other information on the subject of the agreement serve only as a description and include no guarantee on their condition. Deviations from these specifications are not considered as defects as long as they remain within the frame of the state-of-the-art permitted and as long as their functionality is not considerably affected.
