ANSI 150# Cast Steel Flange End Ball Valve

Size
  • 1  1/2” to 6” (DN40-150)
Material
  • A216 WCB
​Working Pressure
  • 150#
Connection Type
  • ANSI 150# Flange Connection
CATALOGUE :

ANSI 150# Cast Steel Flange End Ball Valve

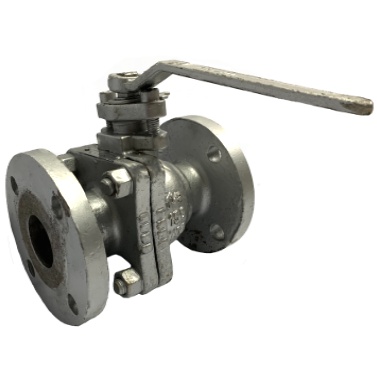

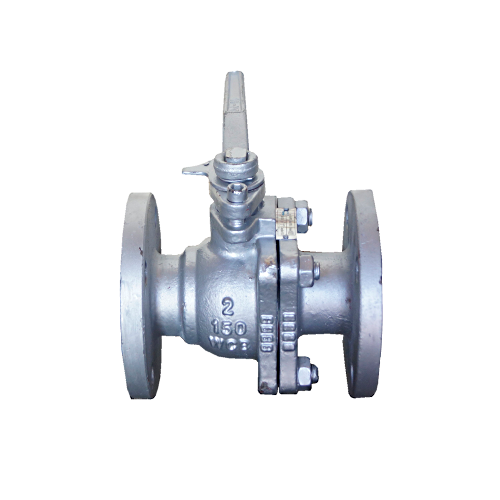

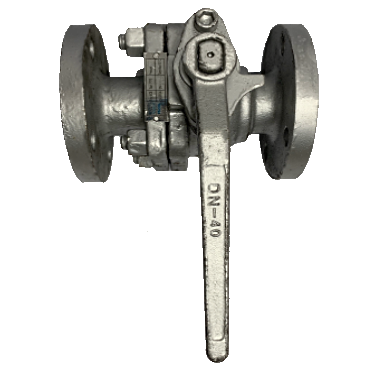

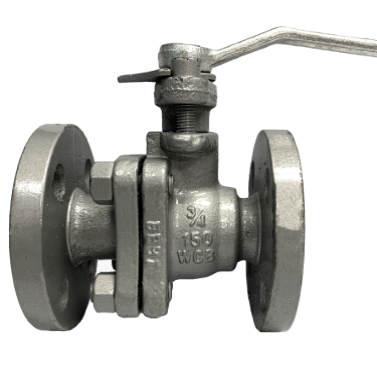

ANSI 150# Cast Steel Flange End Ball Valve

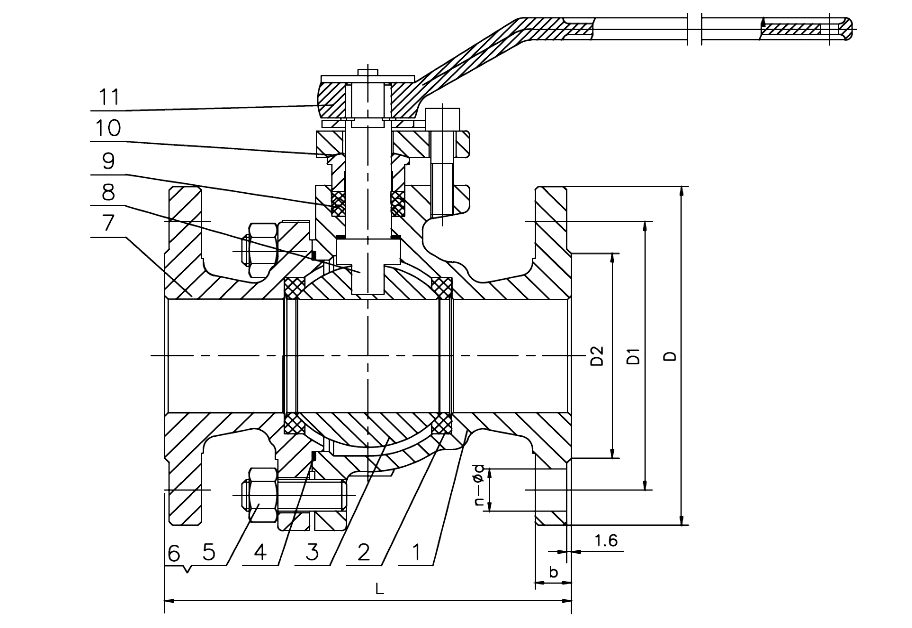

ANSI 150# Cast Steel Flange End Ball Valve Drawing
ANSI 150# Cast Steel Flange End Ball Valve Drawing
No
Part Name
Material
1
Body
ASTM A216 WCB
2
Body Connector
ASTM A216 WCB
3
Ball
ASTM A240 304
6
Stem
ASTM A182 F304
10
Packing Gland
ASTM A216 WCB
13
Seat
PTFE
17a
Gasket
SS304 + GRAPHITE
18
Packing
FLEXIBLE GRAPHITE
19a
Bolts
ASTM A193 B7
19c
Screw
ASTM A193 B7
20a
Nuts
ASTM A194 2H
23
Thrust Washer
PTFE
24
Anti-static Device
SS304
26
Level
ASTM A216 WCB + Zn
31
​Stopper
ASTM A29 1025 + Zn
32
Ring
ASTM A29 1566​

Dimension List

NPS
Part No
D
D1
D2
b
L
n-Ød
Weight
(kg)
3/4"
VL-CS-B2-F-150-12
98
70
43
11.5
114
4-Ø16
2.7
​1"
VL-CS-B2-F-150-16
108
79.5
51
13
125
4-Ø16
3.5
​1  1/4"
VL-CS-B2-F-150-20
117
89
64
13
137
4-Ø16
4.8
​1  1/2"
VL-CS-B2-F-150-24
128
100
74.1
16.2
163
4-Ø19
5.9
​2"
VL-CS-B2-F-150-32
154
120
95.4
17
177
4-Ø19
8.0
​2  1/2"
VL-CS-B2-F-150-40
180
143
107
19.3
187
4-Ø19
12.2
​3"
VL-CS-B2-F-150-48
192
155
129.5
19.3
202
4-Ø19
15.2
​4"
VL-CS-B2-F-150-64
230
190
162
22.8
228
8-Ø19
22.9
6"
VL-CS-B2-F-150-96
280
240
215
23
394
8-Ø22
50.7

Main Technical Parameter

​Normal Pressure
Class 150
Body Test Pressure
3.0 MPa
Seat Test Pressure
2.2 MPa
Hermetical Sealing Test
0.6 MPa
Max Working Temperature
-29°C​ - 150​°C

Technical Specifications

Basic design and manufacture according to API 608
Valve body wall thickness according to ASME B16.34
Face-to-face dimensions complies with ASME B16.10
Flange ends complied with ASME B16.5
Inspection and tested according to API598

ANSI 150# Cast Steel Flange End Ball Valve Catalogue

ansi 150# cast steel flange end ball valve pdf

Conditions of Use of Catalogue​
Specifications of the Products or other information on the subject of the agreement serve only as a description and include no guarantee on their condition. Deviations from these specifications are not considered as defects as long as they remain within the frame of the state-of-the-art permitted and as long as their functionality is not considerably affected.
