ANSI 150# Cast Steel Gate Valve

​Size
  • ​5" - 6"
Material
  • Cast Steel
Working Pressure
  • ​150#
Connection Type
  • ANSI 150#​ Flange Connection
CATALOGUE :

​​​ANSI 150# Cast Steel Gate Valve​

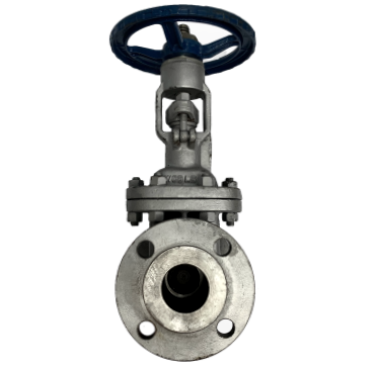

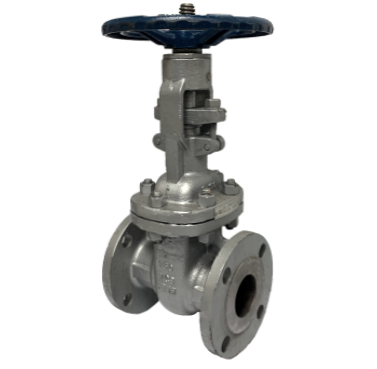

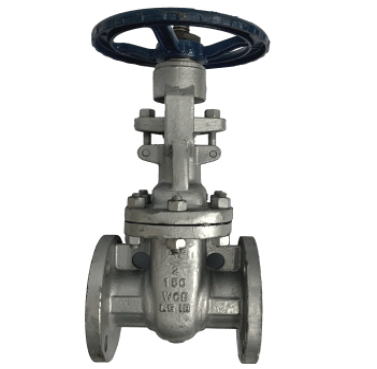

ANSI 150# Cast Steel Gate Valve

ANSI 150# Cast Steel Gate Valve Drawing
ANSI 150# Cast Steel Gate Valve Drawing
No
Part Name
Material
1
Body
ASTM A216 WCB
2
Bonnet
ASTM A216 WCB
3
Wedge
ASTM A216 WCB + 13%Cr
5
Seat
ASTM A105 + 13%Cr
6
Stem
ASTM A182 F6a
10a
Packing Gland
ASTM A276 410
10b
Gland Flange
ASTM A216 WCB
17a
Gasket
SS304 + Graphite
18
Packing
Flexible Graphite
19a
Bolts
ASTM A193 B7
19c
Eye Bolts
ASTM A193 B7
20a
Nuts
ASTM A194 2H
20c
Nuts
ASTM A194 2H
23
Back Seat
ASTM A276 410

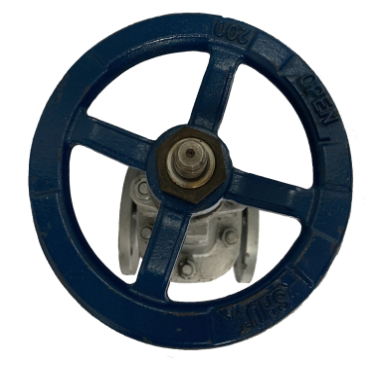

26
Handwheel
ASTM A47 32510
28
Stem Nut
ASTM B148 C95800
33
Pin
ASTM A29 1045
34
Stem Nut
ASTM B148 C95800
35
Cover
ASTM A29 1025
36
Nut
ASTM A29 1025

Dimension List

NPS
Part No
d
L
D
D1
D2
​n – d1
C
f
2"
VL-CS-GA-F-150-32
51
178
150
120.7
92.1
​4-Ø19
14.3
2
2  1/2"
VL-CS-GA-F-150-40
65
190
180
139.7
104.8
​4-Ø19
15.9
2
3"
VL-CS-GA-F-150-48
76
203
190
152.4
127
​4-Ø19
17.5
2
4"
VL-CS-GA-F-150-64
102
229
229
190.5
157
​​8-Ø19
22.3
2
DN 50 - DN 100
NPS
Part No
d
L
O
W
R
​n – Øz
K
H
​t
f
5"
VL-CS-GA-F-150-80
127
178
152
120
92.1
8-Ø22
300
676
22.3
2
6"
VL-CS-GA-F-150-96
152
190
178
139
104.8
8-Ø22
300
766
23.9
2
DN 125 - DN 150

Main Technical Parameter

Normal Pressure
150 PSI
Hydraulic Body Test
3.1 MPa
​Back Seal Test
2.2 MPa
Seat Test
2.2 MPa
Hermetical Seal Test
0.6 MPa
​Max Working Temperature
​-29°C to 425°C

Technical Specifications

Basic design and manufacture according toAPI 600
Face to face dimension: ASME B16.10
Flange End: ASME B16.5
Inspection and test: API 598

ANSI 150# Cast Steel Gate Valve Catalogue

ANSI 150# Cast Steel gate valve pdf

Conditions of Use of Catalogue​
Specifications of the Products or other information on the subject of the agreement serve only as a description and include no guarantee on their condition. Deviations from these specifications are not considered as defects as long as they remain within the frame of the state-of-the-art permitted and as long as their functionality is not considerably affected.
