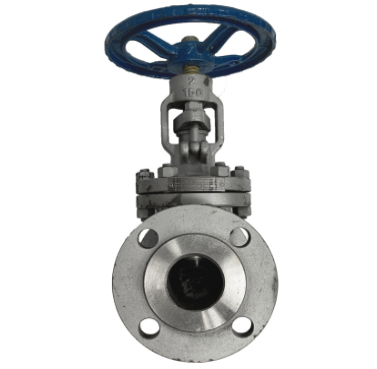

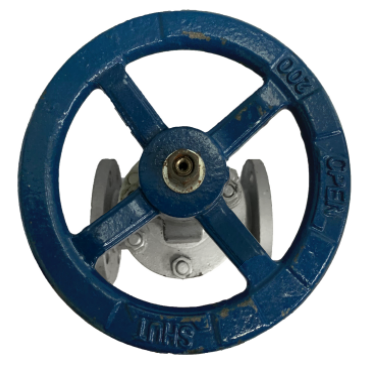

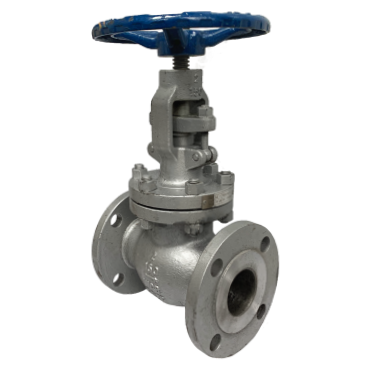

ANSI 150# Cast Steel Globe Valve

ANSI 150# Cast Steel Globe Valve
ANSI 150# Cast Steel Globe Valve
ANSI 150# Cast Steel Globe Valve
ANSI 150# Cast Steel Globe Valve
​Size
  • ​2" – 4" (DN50 - 100)
  • 2  1/2" (DN65)
Material
  • ​Cast Steel
Working Pressure
  • Class 150
Connection Type
  • ANSI 150# Flange Connection​
CATALOGUE :

​​​​ANSI 150# Cast Steel Globe Valve​​


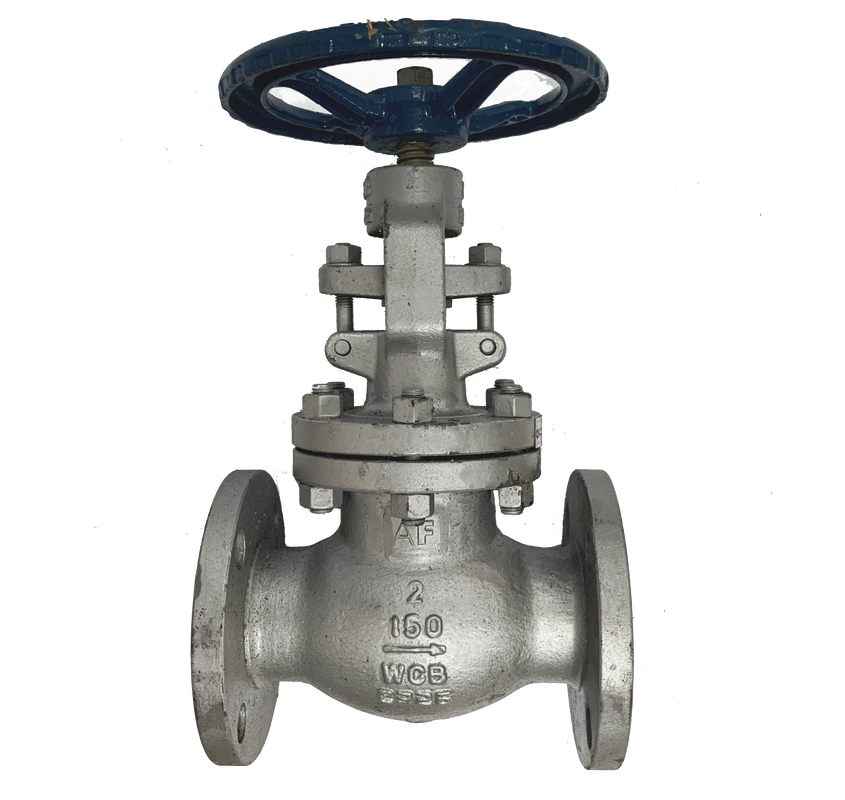

ANSI 150# Cast Steel Globe Valve ​2" – 4" (DN50 - 100)

ANSI Cast Steel 150# Globe Valve ​2

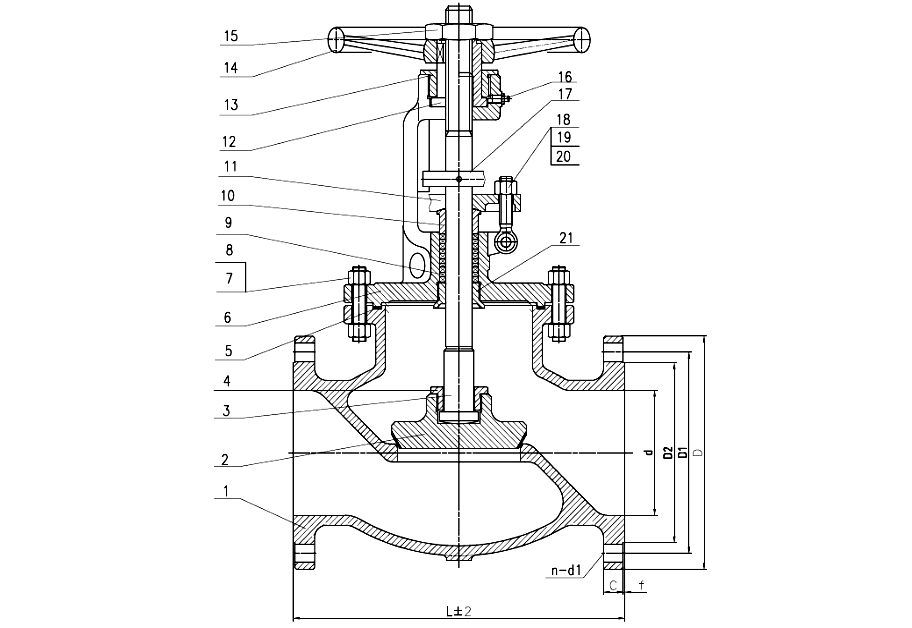

ANSI 150# Cast Steel Globe Valve ​2" – 4" (DN50 - 100) Drawing
No
Part Name
Material
1
Body
ASTM A216 WCB
2
Disc
ASTM A105 + 13%Cr
3
Stem
ASTM A182 F6a
4
Gland
AISI 1035
5
Gasket
304 + Graphite
6
Bonnet
ASTM A216 WCB
7
Bolt
ASTM A193 B7
8
Nut
ASTM A194 2H
​9
Packing
​Flexible Graphite
10
Gland
​ASTM A276 410
11
Gland Flange
​ASTM A216 WCB
12
​Stem Nut
​D2
13
Retaining Nut
​AISI 1035
14
Handwheel
​ASTM A216 WCB
15
Lock Nut
​AISI 1020
16
Nipple
​Assembly
17
Plate
​ASTM A216 WCB
18
Eye Bolt
​AISI 1035
19
Pin
​Carbon Steel
20
Nut
​ASTM A194 2H
21
Back Seat
​ASTM A276 410

Dimension List

NPS
Part No
d
L
D
D1
D2
​n – d1
C
f
2"
VL-CS-GL-F-150-32
51
203
152
120.7
92.1
​4-Ø19
17.5
2
3"
VL-CS-GL-F-150-48
76
241
190
152.4
127
​4-Ø19
22.3
2
4"
VL-CS-GL-F-150-64
102
292
230
190.5
157
​4-Ø19
22.3
2

Main Technical Parameter

Nominal Pressure
150#
​Shell Test Pressure
3.0 MPa
Back Seal Test
2.2 Mpa
Seal Test
2.2 MPa
Gas Test
0.6 MPa
Max Working Pressure
​​≤ 425°C

ANSI 150# Cast Steel Globe Valve 2  1/2" (DN65)

ANSI Cast Steel 150# Globe Valve 2  1/2

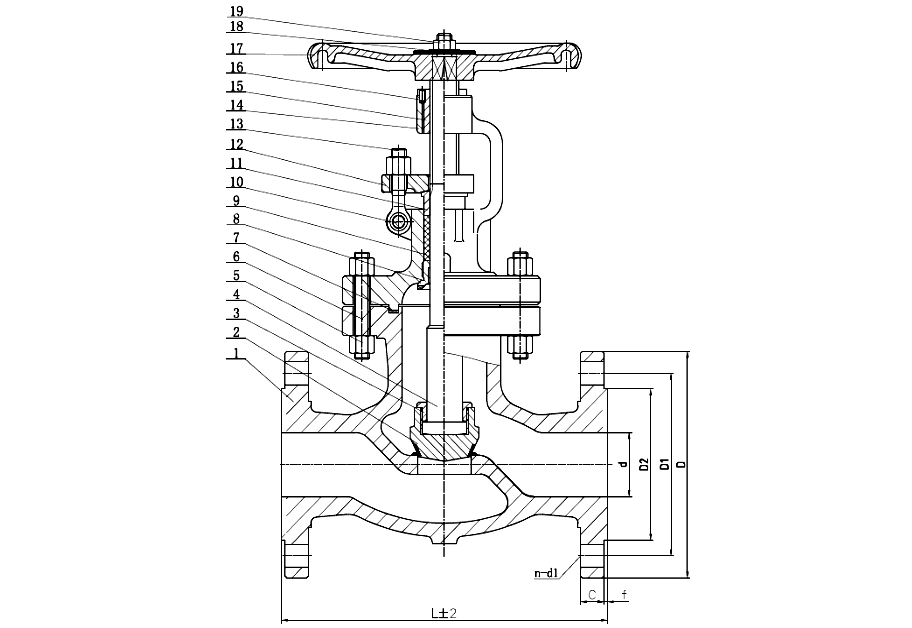

ANSI 150# Cast Steel Globe Valve 2 1/2" (DN65) Drawing
No
Part Name
Material
1
Body
ASTM A216 WCB +13%Cr
2
Disc
ASTM A105 + 13%Cr
3
Grand
AISI 1035
4
Stem
ASTM A182 F6a
5
Bolt
ASTM A193 B7
6
Nut
ASTM A194 2H
7
Gasket
304 + Graphite
8
Back Seat
ASTM A276 410
​9
Packing
Graphite
10
Pin
Carbon Steel
11
Grand
ASTM A276 410
12
Packing Grand
ASTM A216 WCB
13
Eye Bolt
​AISI 1035
14
Bonnet
​ASTM A216 WCB
15
Stem Nut
D2
16
Screw
AISI 1025
17
Handwheel
​ASTM A216 WCB
18
Gasket
Carbon Steel
19
Nut
ASTM A194 2H

Dimension List

NPS
Part No
d
L
D
D1
D2
n – d1
C
f
2  1/2"
VL-CS-GL-F-150-40
65
216
180
139.7
104.8
​4-Ø19
15.9
2

Main Technical Parameter

Normal Pressure
150#
Shell Test Pressure
3.0 MPa
Back Seal Test
2.2 MPa
Seal Test
2.2 MPa
Gas Pressure
0.6 MPa
​Max Working Pressure
​≤ 429°C

​Technical Specifications

Basic design and manufacture according to ASME B16.4 & BS 1873
Face to face dimension: ASME B16.10
Flange End: ASME B16.5
Inspection and test: API 598

ANSI 150# Cast Steel Globe Valve Catalogue

ANSI 150# CAST STEEL GLOBE VALVE pdf
