ANSI 150# Cast Steel Swing Check Valve

​Size
  • 1  1/2” to 6" (DN40-150)
Material
  • A216 WCB
Working Pressure
  • 150#
Connection Type
  • ANSI 150# Flange Connection
CATALOGUE :

​​​ANSI 150# Cast Steel Swing Check Valve​​

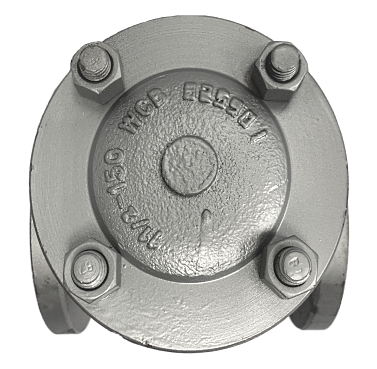

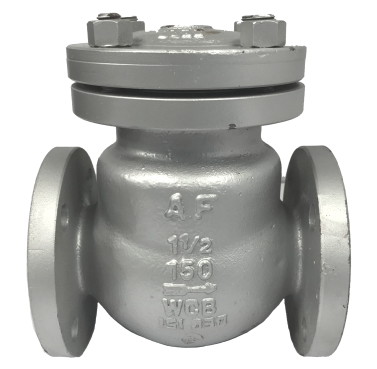

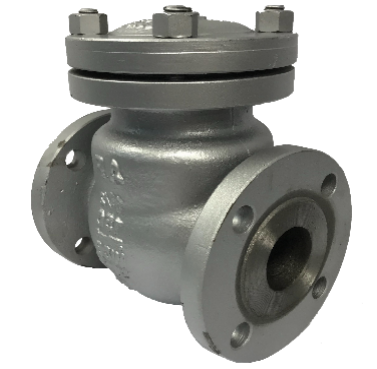

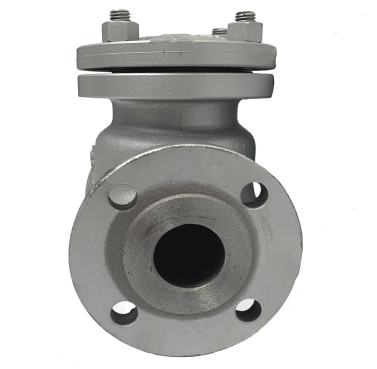

ANSI Cast Steel 150# Swing Check Valve

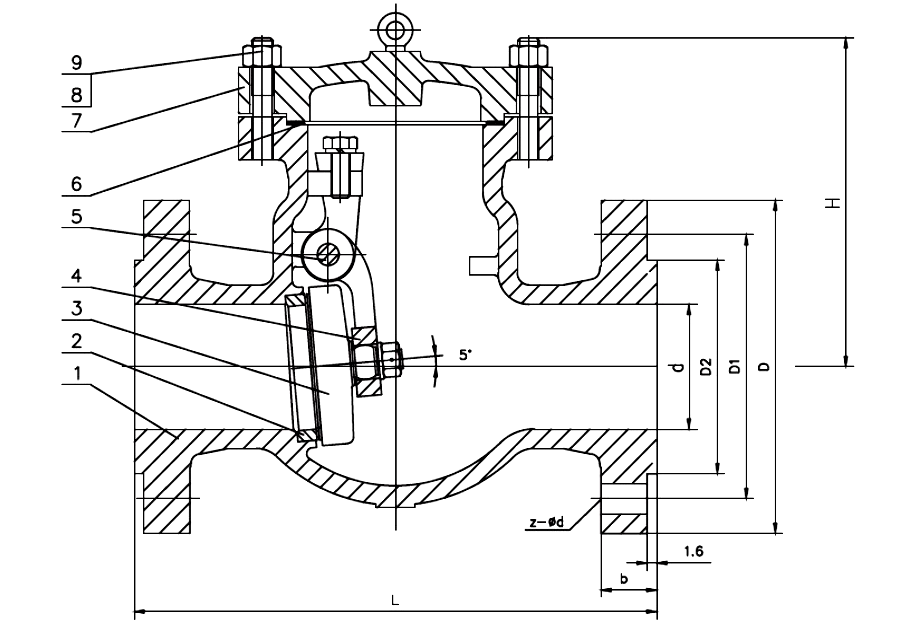

ANSI 150# Cast Steel Swing Check Valve Drawing
ANSI 150# Cast Steel Swing Check Valve Drawing
No
Part Name
Material
1
Body
ASTM A216 WCB
2
Seat
ASTM A105 + F6
3
Disc
ASTM A216 WCB + F6
4
Hinge
ASTM A216 WCB
5
Hinge Pin
ASTM A276 410
6
Gasket
SS304 + Graphite
7
Bonnet
ASTM A216 WCB
8
Bonnet Bolt Nut
ASTM A193 Gr.2H
9
Bonnet Bolt
ASTM A193 Gr.B7

Dimension List

NPS
Connection
IMPA Code
Part No
DN
D1
D2
d
H
L
Z-Ød
b
1  1/2"
Flange-end
-
VL-CS-SC-F-150-24
127
98.5
73
38
115
162.5
4-Ø16
15
2"
Flange-end
-
VL-CS-SC-F-150-32
152
120.7
95
51
145
200
​4-Ø19
16
2  1/2"
Flange-end
-
VL-CS-SC-F-150-40
177.8
139.7
108
64
150
212
​4-Ø19
19
3"
Flange-end
-
VL-CS-SC-F-150-48
190.5
152.4
127
76
185
241
​4-Ø19
19
4"
Flange-end
-
VL-CS-SC-F-150-64
229
190.5
157
102
215
288
8-Ø19
24
5"
Flange-end
-
VL-CS-SC-F-150-80
254
216
185.7
127
245
325
8-Ø22
24
6"
Flange-end
-
VL-CS-SC-F-150-96
281
241.3
216
152
260
356
8-Ø22
24

Performance Specification Sheet

​Nominal Pressure
150#
Shell Pressure Test
3.0 MPa
Seal Pressure Test
2.2 MPa
Air Seal Pressure Test
0.6 MPa
Max Working Temperature
-29°C to 425​°C

Technical Specifications

Basic design and manufacture according to BS1868
End to end according to ASME B16.10
End connection complied with ASME B16.5
Inspection and tested according to API 598

ANSI 150# Cast Steel Swing Check Valve

ANSI 150# Cast Steel Swing Check Valve pdf

Conditions of Use of Catalogue​
