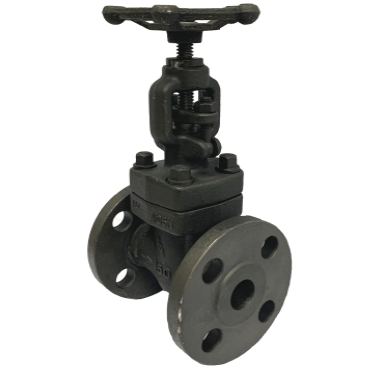

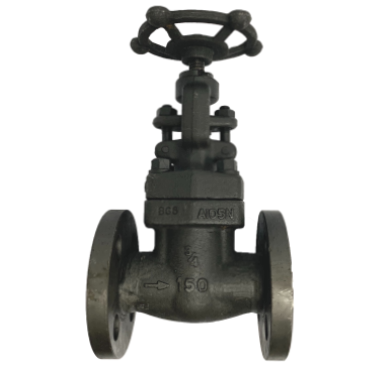

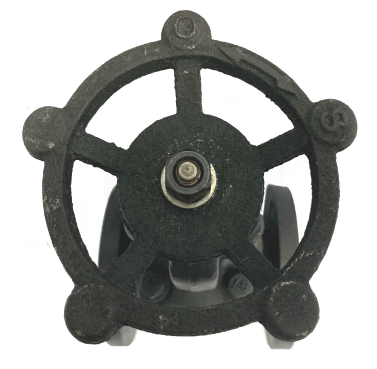

ANSI 150# Forged Steel Globe Valve

ANSI 150# Forged Steel Globe Valve
ANSI 150# Forged Steel Globe Valve
ANSI 150# Forged Steel Globe Valve
​Size
  • 1" – 1  1/2”
Material
  • Forged Steel A105
Working Pressure
  • ​150#
Connection Type
  • ANSI 150#​ Flange Connection
CATALOGUE :

​​​​ANSI 150# Forged Steel Globe Valve​


ANSI 150# Forged Steel Globe Valve

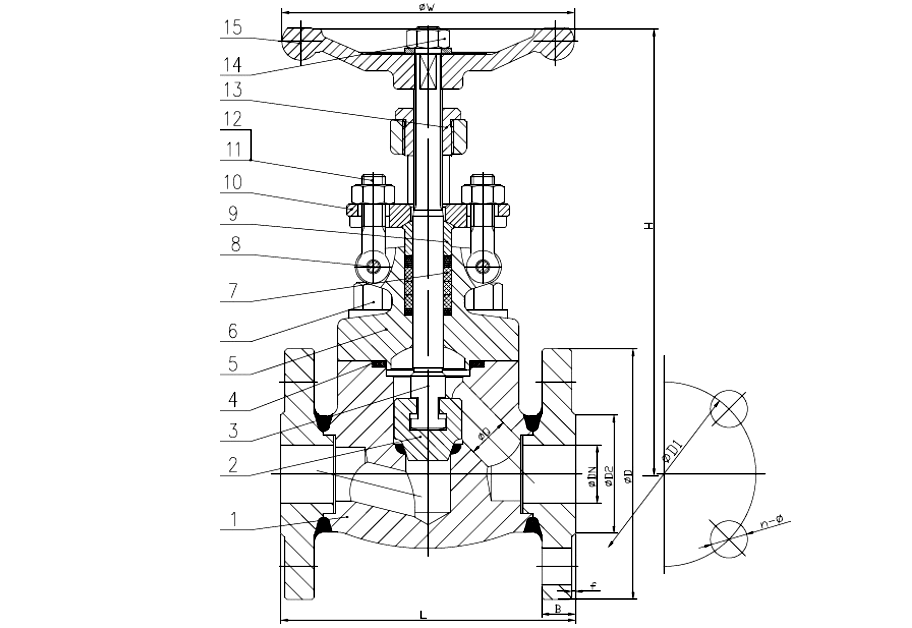

ANSI Forged Steel 150# Globe Valve Drawing
ANSI 150# Forged Steel Globe Valve Drawing
No
Part Name
Material
1
Body + Seat
ASTM A105 +13Cr
2
Disc
ASTM A276 420
3
Stem
ASTM A182 6A
4
Gasket
SS304 + Graphite
5
Bonnet
ASTM A105
6
Bonnet Bolt
ASTM A193 B7
7
Packing
Graphite
​8
Pin
ASTM A307-A
9
Gland
ASTM A276 410
10
Gland Flange
ASTM A105
11
Gland Bolt
ASTM A193 B7
12
Gland Nut
ASTM A194 2H
13
Yoke Sleeve
ASTL 276 410
14
Lock Nut
Carbon Steel
15
Handwheel
​ASTM A197

Dimension List

NPS
Part No
d
D
D1
D2
L
W
H
B
F
​n – Øz
1"
VL-FS-GA-F-150-16
18
108
79
51
127
125
160
14
1.6
4-Ø16
1  1/4"
VL-FS-GA-F-150-20
23
117
89
63.5
140
160
200
16
1.6
4-Ø16
1  1/2"
VL-FS-GA-F-150-24
29
127
98.5
73
165
160
200
17.5
1.6
​4-Ø16

Main Technical Parameter

Normal Pressure
150 PSI
​Shell Test Pressure
3.0 MPa
Seal Test
2.2 MPa
Gas-Tightness Test
0.6 MPa
Max Working Pressure
-29°C to 425°C

Technical Specifications

​Basic design and manufacture according to API 602/BS5352
Face to face dimension: ASME B16.10
Flange End: ASME B16.5 RF
Inspection and test: API 598

ANSI 150# Forged Steel Globe Valve Catalogue

ANSI 150# Forged Steel Globe Valve pdf

Conditions of Use of Catalogue​
Specifications of the Products or other information on the subject of the agreement serve only as a description and include no guarantee on their condition. Deviations from these specifications are not considered as defects as long as they remain within the frame of the state-of-the-art permitted and as long as their functionality is not considerably affected.
