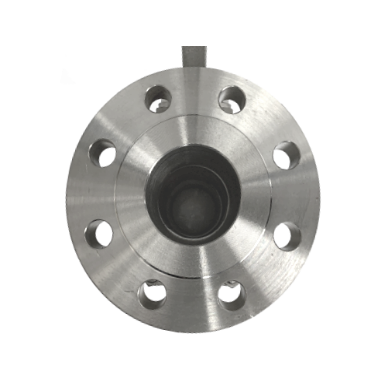

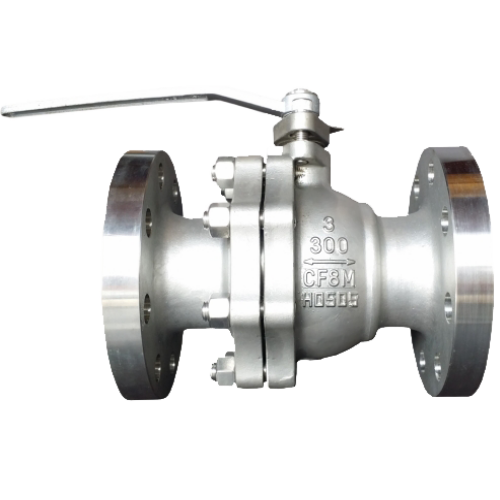

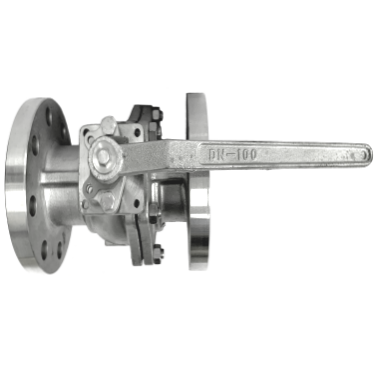

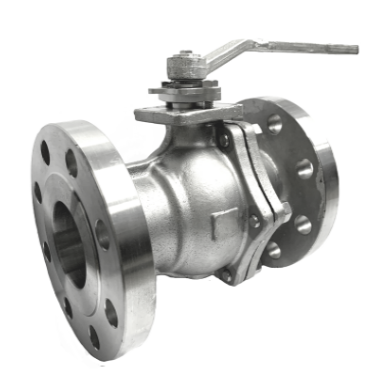

ANSI 300# SS316 Flange End Ball Valve

Size
  • 1/2” to 6” (DN15-150)
Material
  • ​Stainless Steel SS316
​Working Pressure
  • 300#
Connection Type
  • ANSI 300# Flange connection
CATALOGUE :

​​ANSI 300# SS316 Flange End Ball Valve


ANSI 300# SS316 Flange End Ball Valve

ANSI 300# SS316 Flange End Ball Valve Drawing
ANSI 300# SS316 Flange End Ball Valve Drawing
No
Part Name
Material
1
Left Body
SS316 & CF8M
2
Stud Body
SS304
3
Nut
SS304
4
Ball
SS316
5
Seat
​PTFE
6
Body
SS316 & CF8M
7
Stem
SS316
8
Gasket
PTFE
9
O Ring
​PTFE
10
Hexagon Screw
SS304
11
Packing
PTFE
12
Bonnet
SS316
13
Stop Block
SS304
14
Handle
SS201

Dimension List

NPS
Connection
IMPA Code
Part No
DN
D
D1
D2
B
L
H
W
N-Z
F
Weight (kg)
1/2"
Flange-end
-
VL-S-B2-F-300-08
15
95
67
35
14
140
73
155
4-14
2
-
3/4"
Flange-end
-
VL-S-B2-F-300-12
20
117
83
43
16
152
76
160
4-16
2
-
1"
Flange-end
-
VL-S-B2-F-300-16
25
124
89
51
16
165
86
180
 4-16
2
-
1  1/4"
Flange-end
-
VL-S-B2-F-300-20
32
133
99
64
16
178
91
180
4-16
2
-
1  1/2"
Flange-end
-
VL-S-B2-F-300-24
38
155
114
73
16
190
119
200
8-16
3
-
2"
Flange-end
-
 VL-S-B2-F-300-32
50
165
127
92
18
216
127
350
4-18
3
-
2  1/2"
Flange-end
-
VL-S-B2-F-300-40
65
190
150
105
18
241
136
400
8-19
3
-
3"
​Flange-end
-
VL-S-B2-F-300-48
78
210
168
127
20
283
164
500
8-18
3
31.00
4"
​​Flange-end
​-
VL-S-B2-F-300-64
100
254
200
157
20
305
218
500
8-19
3
43.00
6"
​​Flange-end
-
VL-S-B2-F-300-96
150
317
235
216
24
403
260
600
12-19
3
-

Main Technical Parameter

Nominal Pressure
Class 300
Shell Test Pressure
6.0 MPa
Tightness Test
4.4 Mpa
Gas-Tightness Test
0.6 MPa
Max Working Temperature
​-29°C to 150°C

Technical Specifications

Basic design and manufacture according to API 6D
Face-to-face dimensions complies with ASME B16.10
Flange dimension : ANSI B16.5
Inspection and tested according to API598

ANSI 300# SS316 Flange End Ball Valve Catalogue

ANSI 300# SS316 Flange End Ball Valve PDF

Conditions of Use of Catalogue​
Specifications of the Products or other information on the subject of the agreement serve only as a description and include no guarantee on their condition. Deviations from these specifications are not considered as defects as long as they remain within the frame of the state-of-the-art permitted and as long as their functionality is not considerably affected.
