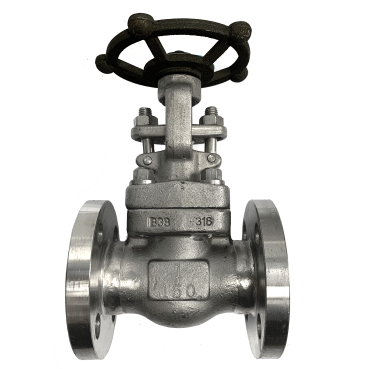

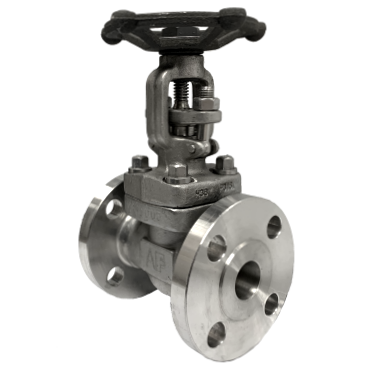

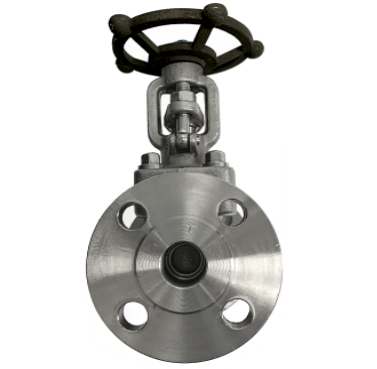

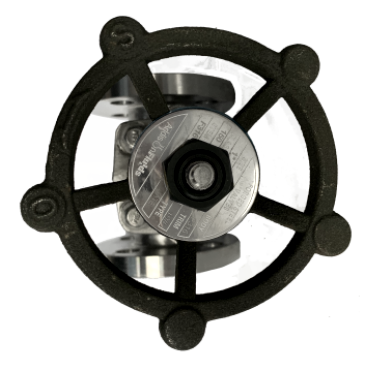

ANSI 150# SS316 Gate Valve

​Size
  • ​​2" to 4" (DN40-100)
Material
  • ​Stainless Steel SS316 / CF8M
Working Pressure
  • ​150#
Connection Type
  • ANSI 150# Flange Connection
CATALOGUE :

​​​​ANSI 150# SS316 Gate Valve​


ANSI 150# SS316 Gate Valve

ANSI 150# SS316 Gate Valve (1
ANSI 150# SS316 Gate Valve (1"–1 1/2”) Drawing
No
Part Name
Material
1
Body
ASTM A182 F316
2
Seat
ASTM A182 F316
3
Wedge
ASTM A182 F316
4
Stem
ASTM A182 F316
5
Gasket
SS316 + Graphite
6
Bonnet
ASTM A182 F316
7
Bonnet Bolt
ASTM A193 B8M
8
Packing
Graphite
9
Pin
​ASTM A182 F316
10
Gland
​ASTM A182 F316
11
Gland Flange
​ASTM A182 F316
12
Gland Bolt
ASTM A193 B8M
13
Gland Nut
ASTM A194 8M
14
Yoke Sleeve
ASTM A276 410
15
Lock Nut
Carbon Steel
16
Handwheel
ASTM A197

Dimension List

NPS
Part No
Q
D
D1
D2
L
W
H
B
F
​n-Øz
1"
​VL-S-GL-F-150-16
18
108
79
51
127
125
203
14
1.3
4-Ø16
1  1/4"
VL-S-GL-F-150-20
23
117
89
63.5
140
160
224
16
1.3
​4-Ø16
1  1/2"
​VL-S-GL-F-150-24
30
127
98.5
75
165
160
260
17.5
1.3
​4-Ø16

Main Technical Parameter

Normal Pressure
150 PSI
​Shell Test Pressure
3.0 MPa
Seal Test
2.2 Mpa
Gas-Tightness Test
0.6 MPa
Max Working Pressure
-29°C to 425°C

Technical Specifications

Basic design and manufacture according to API602/BS5352
Face to face dimension: ASME B16.10
Flange End: ASME B16.5 RF
​Inspection and test: API 598

ANSI SS316 150# Gate Valve (2
ANSI SS316 150# Gate Valve (2"–4") Drawing
No
Part Name
Material
1
Body
A351 CF8M
2
Wedge
A351 CF8M
3
Stem
SS316
4
Gasket
SS316 + Graphite
5
Bolt
A193 B8M
6
Nut
A193 B8M
7
Packing
Graphite
8
Pin
SS304
9
Eye Bolt
A193 B8M
10
Gland Nut
SS316
11
Gland Flange
A351 CF8M
12
Bonnet
A351 CF8M
13
Nipple
Assembly
14
Stem Nut
A439 D2
15
Nut
AISI 1035
16
Handwheel
WCB
17
Lock Nut
AISI 1035

Dimension List

NPS
Part No
d
R
W
O
t
f
L
2"
VL-S-GA-F-150-32
49
92
85
156
15.0
1.5
176
2  1/2"
 VL-S-GA-F-150-40
63
107
98
180
16.5
1.5
188
3"
VL-S-GA-F-150-48
76
124
108
191
18.0
2.0
202
4"
​VL-S-GA-F-150-64
98
160
72
231
22.5
2.0
228

​Main Technical Parameter

Normal Pressure
150#
​Shell Test Pressure
3.0 MPa
Seal Test
2.2 Mpa
Gas-Tightness Test
0.6 MPa
Max Working Pressure
≤ 425°C

Technical Specifications

Basic design and manufacture according to API 600
Face to face dimension: ASME B16.10
Flange End: ASME B16.5 RF
​Inspection and test: API 598

ANSI 150# SS316 Gate Valve Catalogue

ANSI 150# SS316 GATE VALVE pdf

Conditions of Use of Catalogue​
Specifications of the Products or other information on the subject of the agreement serve only as a description and include no guarantee on their condition. Deviations from these specifications are not considered as defects as long as they remain within the frame of the state-of-the-art permitted and as long as their functionality is not considerably affected.
