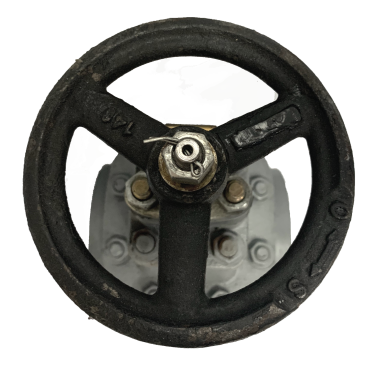

JIS 10K Cast Iron Gate Valve

​Size
  • 2" – 4" (DN50 – DN100)
  • 5" – 6" (DN125 – DN150)
Material
  • Cast Iron
Working Pressure
  • ​10kg/cm²
Connection Type
  • JIS 10K Flange Connection

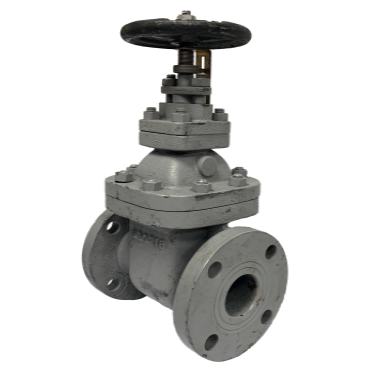

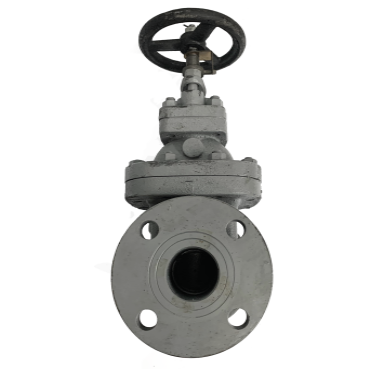

JIS 10K Cast Iron Gate Valve 2" – 4" (DN50 – DN100)

JIS 10K Cast Iron Gate Valve 2
JIS 10K Cast Iron Gate Valve 2" – 4" (DN50 – DN100) Drawing
No
Part Name
Material
1
Body
ASTM A126 B + SS
2
Wedge
 ASTM A126 B + SS
3
Stem Nut
ASTM A276 410
4
Stem
ASTM A276 410
5
Bolts
ASTM A29 1035
6
​Nuts
ASTM A29 1025
7
Gasket
SS304+Graphite
8
Bonnet
ASTM A126 B
9
Gasket
Flexible Graphite
10
Thrust Washer
SS
11
Yoke
​ASTM A126 B
12
Packing
Flexible Graphite
13
Nuts
ASTM A29 1025
14
Bolts
ASTM A29 1035
15
Pin
ASTM A29 1025
16
Packing Gland
​ASTM A276 410​
17
Gland Flange
ASTM A126 B
18
Nuts
​ASTM A29 1025
19
Eye Bolts
ASTM A29 1035
20
Handwheel
ASTM A47 32510
21
Nut
​ASTM A29 1025

Dimension List

NPS
Part No
d
L
O
W
n – Øz
t
2"
VL-CI-GA-F-10K-32
50
200
155
120
4-Ø19
20
2  1/2"
VL-CI-GA-F-10K-40
65
220
175
140
​4-Ø19
22
​3"
VL-CI-GA-F-10K-48
80
230
185
150
8-Ø19
22
4"
VL-CI-GA-F-10K-64
100
250
210
175
8-Ø19
24

Main Technical Parameter

Normal Pressure
10K
Hydraulic Body Test
2.06 MPa
​Seal Test
1.57 MPa
Hermetical Seal Test
0.6 MPa
Max Working Pressure
≤ 429°C

Technical Specifications

Basic design and manufacture according to ASME B16.10
Face to face dimension: ASME B16.10
Flange End: JIS B2212
​Inspection and test: API 598

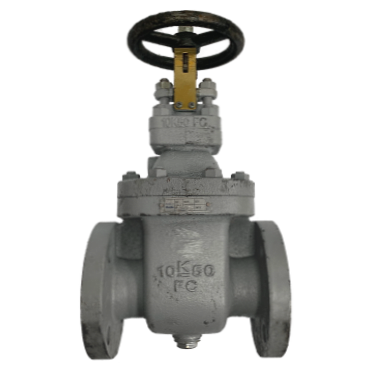

JIS 10K Cast Iron Gate Valve 5" – 6" (DN125 – DN150)

JIS 10K Cast Iron Gate Valve 5
JIS 10K Cast Iron Gate Valve 5" – 6" (DN125 – DN150) Drawing
No
Part Name
Material
1
Body
ASTM A126 B + SS304
2
Wedge
 ASTM A126 B + SS304
3
Stem
ASTM A276 304
4
Bolts
ASTM A29 1035
5
Nuts
ASTM A29 1025
6
Gasket
SS304+Graphite
7
Bonnet
ASTM A126 B
8
Packing
Flexible Graphite
9
Pin
ASTM A29 1045
10
Packing Gland
 ASTM A276 304
11
Gland Flange
​ASTM A126 B
12
Eye Bolts
ASTM A29 1035
13
Nuts
ASTM A29 1025
14
Stem Nut
​ASTM A276 410​
15
Cover
ASTM A29 1025
16
Handwheel
​ASTM A47 32510
17
Nut
ASTM A29 1025

Dimension List

NPS
Part No
d
L
O
W
​n – Øz
t
f
5"
VL-CI-GA-F-10K-80
125
250
250
216
8-Ø22
23.9
2
6"
VL-CI-GA-F-10K-96
150
270
280
241.5
​8-Ø22
25.4
2

​Main Technical Parameter

Normal Pressure
10K
Hydraulic Body Test
2.06 MPa
​Seal Test
1.57 MPa
Hermetical Seal Test
0.6 MPa
Max Working Pressure
≤ 429°C

Technical Specifications

​Basic design and manufacture according to ASME B16.10
Face to face dimension: ASME B16.10
Flange End: JIS B2212
​Inspection and test: API 598
