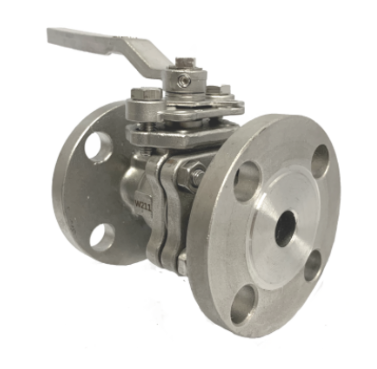

JIS 10K SS316​ Flange End Ball Valve

Size
  • 1/2” to 6” (DN15-150)
Material
  • Stainless Steel SS316
​Working Pressure
  • 10kg/cm2
Connection Type
  • JIS 10K Flange connection
CATALOGUE :

​​JIS 10K SS316 Flange End Ball valve


JIS 10K SS316​ Flange End Ball Valve

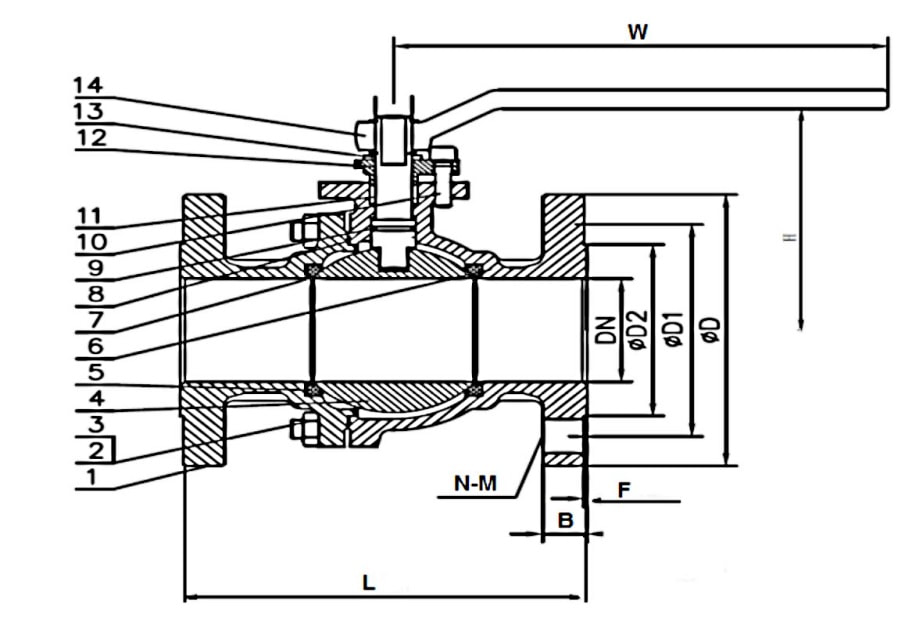

No
Part Name
Material
1
Left Body
SS316 & CF8M
2
Stud Body
SS304
3
Nut
SS304
4
Ball
SS316
5
Seat
​PTFE
6
Body
SS316 & CF8M
7
Stem
SS316
8
Gasket
PTFE
9
O Ring
​PTFE
10
Hexagon Screw
SS304
11
Packing
PTFE
12
Bonnet
SS316
13
Stop Block
SS304
14
Handle
SS201

Dimension List

NPS
Connection
IMPA Code
Part No
DN
D
D1
D2
B
L
H
W
N-M
F
Weight (kg)
1/2"
Flange-end
-
VL-S-B2-F-10K-08
15
89
60.5
35
11.2
108
73
130
4-16
1.6
-
3/4"
Flange-end
-
VL-S-B2-F-10K-12
20
98
70
43
11.2
117
76
130
4-16
1.6
-
1"
Flange-end
-
VL-S-B2-F-10K-16
25
108
79
50
12.7
127
86
160
 4-16
1.6
2.90
1  1/4"
Flange-end
-
VL-S-B2-F-10K-20
32
117
89
64
12.7
140
91
160
4-16
1.6
3.33
1  1/2"
Flange-end
-
VL-S-B2-F-10K-24
38
127
98.6
73
14.3
165
119
200
4-16
1.6
5.22
2"
Flange-end
-
 VL-S-B2-F-10K-32
50
152
120.7
92
19
178
127
200
4-19
1.6
7.86
2  1/2"
Flange-end
-
VL-S-B2-F-10K-40
65
178
139.7
105
22
190
136
200
4-18
1.6
10.38
3"
​Flange-end
-
VL-S-B2-F-10K-48
78
190
152.4
127
23.9
203
164
325
8-18
 1.6
15.55
4"
​​Flange-end
​-
VL-S-B2-F-10K-64
100
228
190.5
157
23.9
229
218
325
8-18
1.6
24.00
5"
​​Flange-end
-
VL-S-B2-F-10K-80
125
254
215
180
18
355
-
-
​8-23
1.6
41.2
6"
​​​Flange-end
-
​VL-S-B2-F-10K-96
150
278
244
215
22
390
-
-
8-23
2
59.4

Main Technical Parameter

Nominal Pressure
JIS 10K
Shell Test Pressure
3.0 MPa
Tightness Test
2.2 Mpa
Gas-Tightness Test
0.6 MPa
Max Working Temperature
​-29°C to 150°C

Technical Specifications

Basic design and manufacture according to JIS B2071
Face-to-face dimensions complied with JIS B2002
Flange ends complied with JIS B2220
Inspection and tested according to JIS B2003

JIS 10K SS316​ Flange End Ball Valve Catalogue

jis 10k ss316 flange end ball valve pdf

Conditions of Use of Catalogue​
Specifications of the Products or other information on the subject of the agreement serve only as a description and include no guarantee on their condition. Deviations from these specifications are not considered as defects as long as they remain within the frame of the state-of-the-art permitted and as long as their functionality is not considerably affected.
