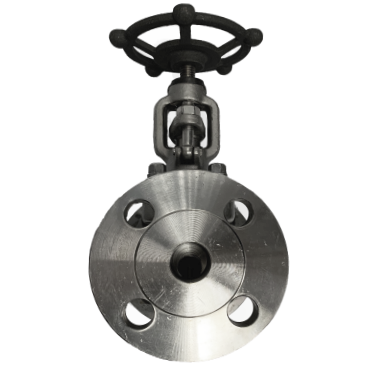

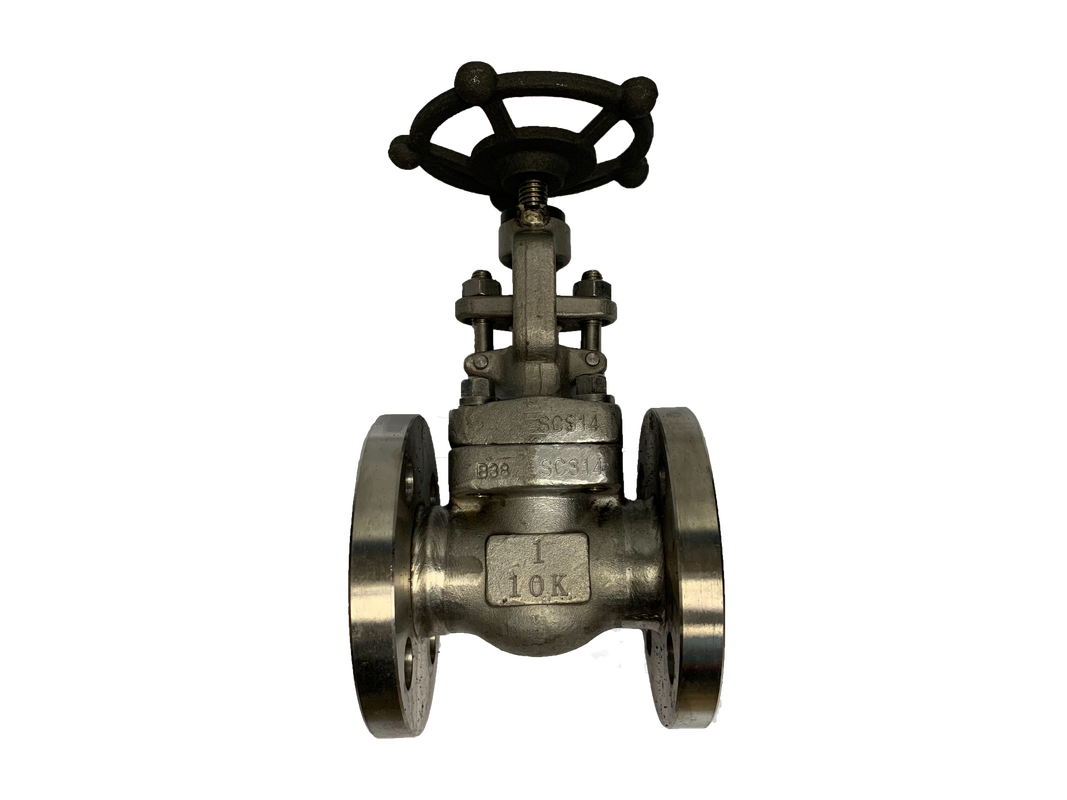

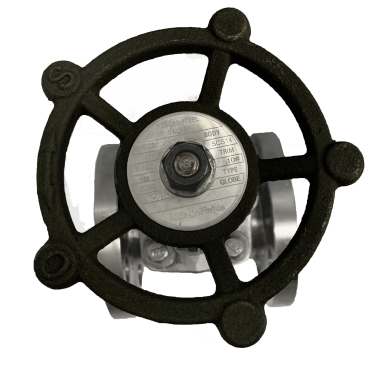

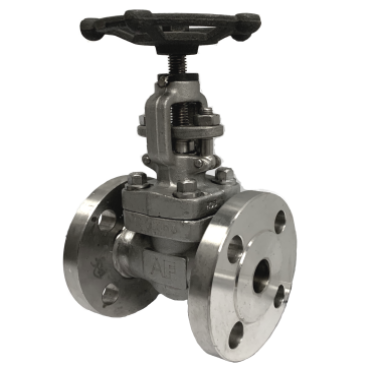

JIS 10K SS316 Globe Valve

JIS 10K SS316 Globe Valve
JIS 10K SS316 Globe Valve
JIS 10K SS316 Globe Valve
JIS 10K SS316 Globe Valve
​Size
  • ​1" – 1  1/2"
Material
  • ​Stainless Steel SS316
Working Pressure
  • ​10kg/cm²
Connection Type
  • JIS 10K Flange Connection
CATALOGUE :

​​​​​JIS 10K SS316 Globe Valves​


JIS 10K SS316 Globe Valve ​1" – 1  1/2" (DN25 - DN40)​

JIS 10K SS316 Globe Valve ​1

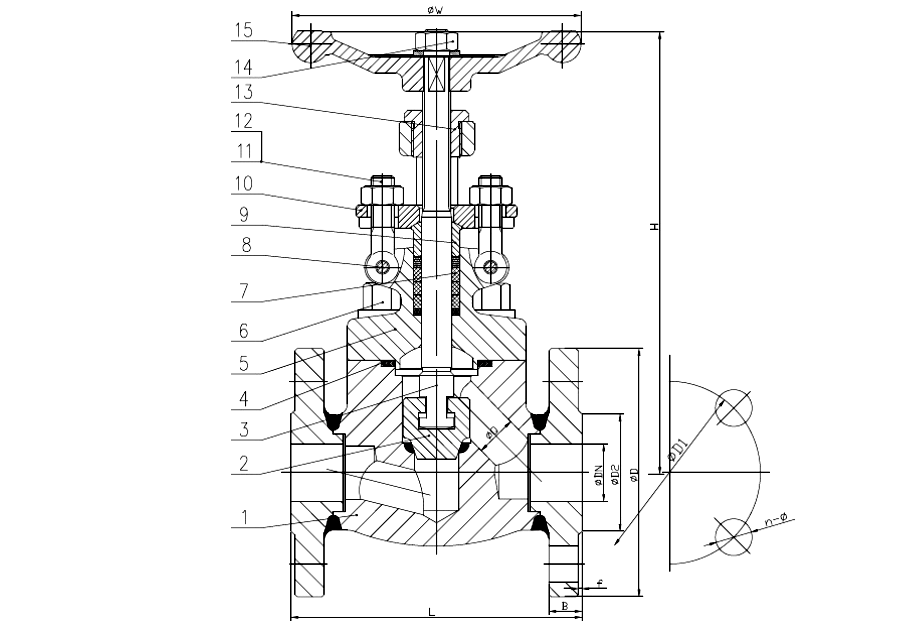

JIS 10K SS316 Globe Valve ​1" – 1 1/2" (DN25 - DN40)​ Drawing
No
Part Name
Material
1
Body + Seat
ASTM A182 F316
2
Disc
ASTM A182 F316
3
Stem
ASTM A182 F316
4
Gasket
SS316 + Graphite
5
Bonnet
​ASTM A182 F316
6
​Bonnet Bolt
​ASTM A193 B8M
7
​Packing
​Graphite
8
Pin
​​ASTM A182 F316
9
​Gland
​​ASTM A182 F316
10
​Gland Flange
​​ASTM A182 F316
11
​Gland Bolt
​ASTM A193 B8M
12
​Gland Nut
ASTM A194 8M
13
Yoke Sleeve
ASTM A276 410
14
​Lock Nut
Carbon Steel
15
​Handwheel
ASTM A197

Dimension List

NPS
Part No
Q
D
D1
D2
L
W
H
B
F
​n-Øz
1"
​VL-S-GL-F-10-16
18
125
90
67
127
125
203
14
1
4-Ø16
1  1/4"
VL-S-GL-F-10-20
23
135
100
76
140
160
224
16
2
​4-Ø16
1  1/2"
​VL-S-GL-F-150-24
28
140
105
81
165
160
260
17.5
2
​4-Ø16

Main Technical Parameter

Normal Pressure
10K
​Shell Test Pressure
3.0 MPa
Seal Test
2.2 MPa
Gas-Tightness Test
0.6 MPa
Max Working Pressure
-29°C to 425°C

Technical Specifications

Basic design and manufacture according to API602/BS5352
Face to face dimension: ASME B16.10
Flange End: JIS B2220;2012 RF
Inspection and test: API 598

JIS 10K SS316 Globe Valve ​2" – 4" (DN50 – DN100)​

JIS 10K SS316 Globe Valve ​2

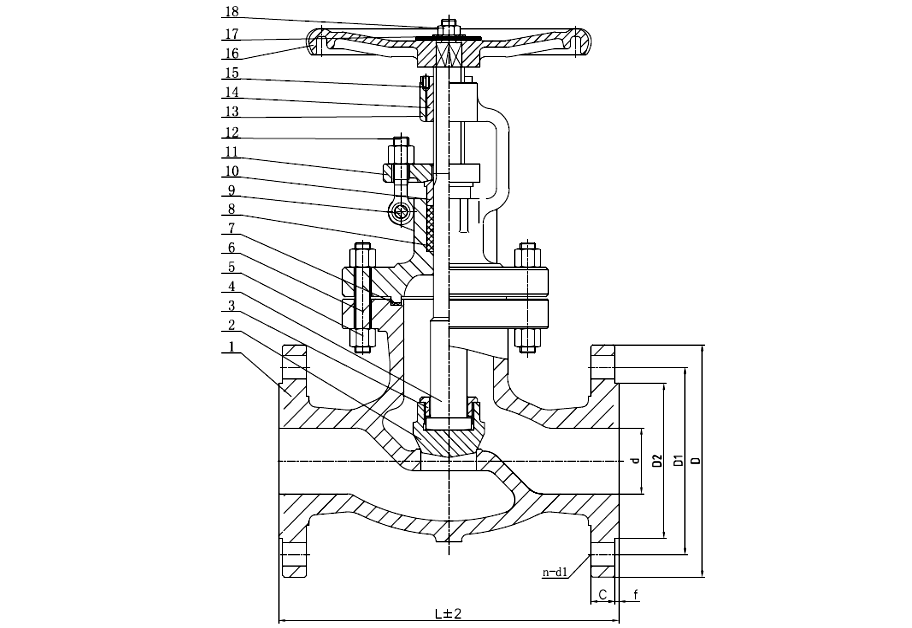

JIS 10K SS316 Globe Valve ​2" – 4" (DN50 – DN100)​ Drawing
No
Part Name
Material
1
Body
A351 CF8M
2
Disc
SS316
3
Grand
SS316
4
Stem
SS316
5
Bolt
A193 B8M
6
Nut
A193 B8M
7
Gasket
SS316 + Graphite
8
Packing
Graphite
9
Pin
SS304
10
Gland Nut
SS316
11
Packing Gland
A351 CF8M
12
Eye Bolt
A193 B8M
13
Bonnet
A351 CF8M
14
Stem Nut
A439 D2
15
Screw
AISI 1025
16
Handwheel
A216 WCB
17
Gasket
SS316
18
Nut
​A194 B8M


Dimension List

NPS
Part No
d
W
O
t
L
2"
VL-S-GL-F-10K-32
50.0
85
156
15.5
201
2  1/2"
VL-S-GL-F-10K-40
63.5
99
175
17.5
215
3"
VL-S-GL-F-10K-48
77.0
57
186
18.5
240
4"
VL-S-GL-F-10K-64
100.5
66
211
18.5
291

Main Technical Parameter

Normal Pressure
​10K
​Shell Test Pressure
3.0 MPa
​Seal Test
2.2 ​MPa
Back Seal Test
2.2 ​MPa
​Gas-Tightness Test
0.6 ​MPa
​Max Working Pressure
​≤ 425°C

​Technical Specifications

Basic design and manufacture according to ASME B16.34 & BS 1873
Face to face dimension: ASME B16.10
Flange End: JIS 2238
Inspection and test: JIS F7400

JIS 10K SS316 Globe Valve Catalogue

jis 10k ss316 globe valve pdf

Conditions of Use of Catalogue​
Specifications of the Products or other information on the subject of the agreement serve only as a description and include no guarantee on their condition. Deviations from these specifications are not considered as defects as long as they remain within the frame of the state-of-the-art permitted and as long as their functionality is not considerably affected.
