JIS 10K SS316 Swing Check Valves

​Size
  • 1/2” to 4" (DN15-100)
Material
  • Stainless Steel SS316 / SCS14A
Working Pressure
  • 10kg/cm²
Connection Type
  • JIS 10K Flange Connection
CATALOGUE :

JIS 10K SS316 Swing Check Valves

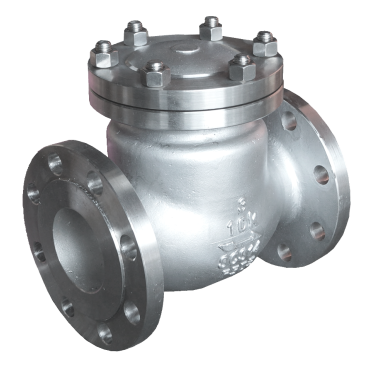

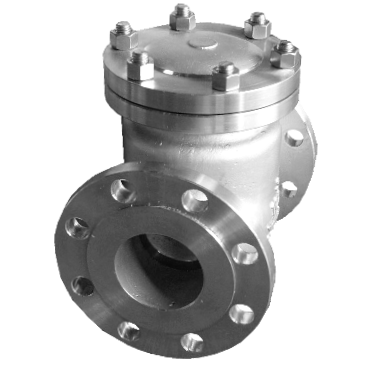

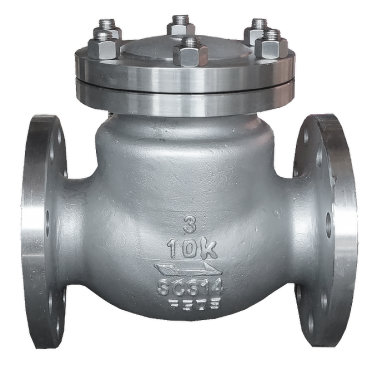

JIS 10K SS316 Swing Check Valve

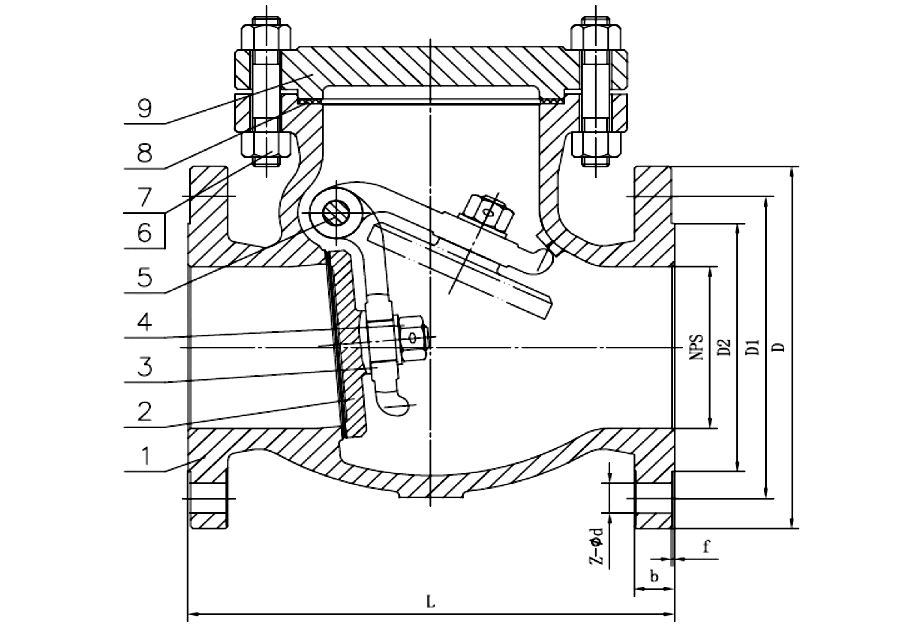

JIS 10K SS316 Swing Check Valve Drawing
JIS 10K SS316 Swing Check Valve Drawing
No
Part Name
Material
1
Body
SCS14A & SS316
2
Disc
SCS14A & SS316
3
Arm
SCS14A & SS316
4
Nut
SS316
5
Hinge Pin
SS316
6
Bolt
SS316
7
Nut
SS316
8
Gasket
PTFE
9
Bonnet
SCS14A & SS316

Dimension List

NPS
Connection
IMPA Code
Part No
DN
NPS
D
D1
D2
L
Z-Ød
b
f
1/2"
Flange-end
-
VL-S-SC-F-10K-08
15
15
Value
Value
Value
Value
Value
Value
Value
3/4"
Flange-end
-
VL-S-SC-F-10K-12
20
20
Value
Value
Value
Value
Value
Value
Value
1"
Flange-end
-
VL-S-SC-F-10K-16
25
25
Value
Value
Value
Value
Value
Value
Value
1  1/2"
Flange-end
-
VL-S-SC-F-10K-24
40
38
Value
Value
Value
Value
Value
Value
Value
2"
Flange-end
-
VL-S-SC-F-10K-32
50
50
Value
Value
Value
Value
Value
Value
Value
2  1/2"
Flange-end
-
VL-S-SC-F-10K-40
65
65
Value
Value
Value
Value
Value
Value
Value
3"
Flange-end
-
VL-S-SC-F-10K-48
80
80
185
150
126
241
4-Ø19
18
2
4"
​Flange-end
-
VL-S-SC-F-10K-64
100
100
230
190.5
157.2
292
8-Ø19
18
2

Performance Specification Sheet

​Nominal Pressure
10K
Shell Test
3.0 MPa
Seal Test
2.2 MPa
Air Seal Test
0.4 - 0.7 MPa

Technical Specifications

Basic design and manufacture according to JIS B2084
Structure length according to JIS B2002
Flange ends complied with JIS B2220
Inspection and tested according to JIS B2003

JIS 10K SS316 Swing Check Valve Catalogue

JIS 10K ss316 swing check valve pdf

Conditions of Use of Catalogue​
Specifications of the Products or other information on the subject of the agreement serve only as a description and include no guarantee on their condition. Deviations from these specifications are not considered as defects as long as they remain within the frame of the state-of-the-art permitted and as long as their functionality is not considerably affected.
