L-Port Ball Valve

Size
  • 1/4” - 2" (DN8 - 50)
Material
  • Stainless Steel SS316
​Working Pressure
  • 1000 PSI
Connection Type
  • BSPP
  • NPT
CATALOGUE :

L-Port Ball Valve

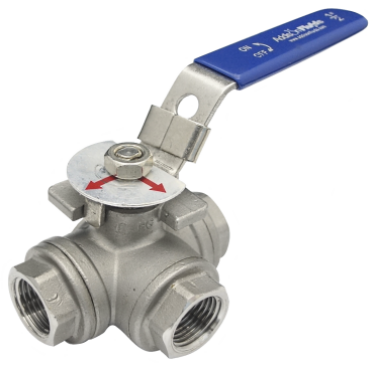

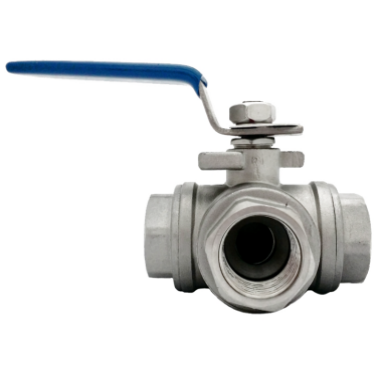

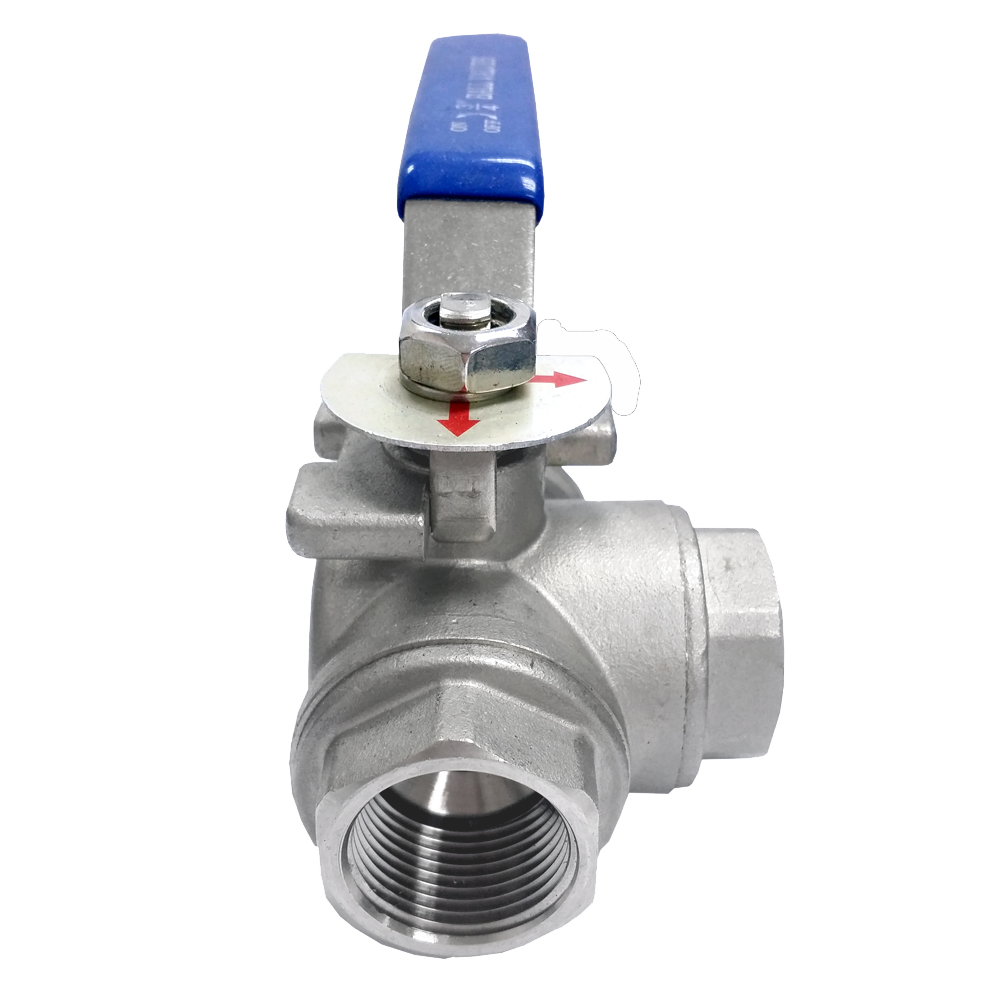

Low Pressure 1000 PSI Stainless Steel 3 Way Ball Valve L-Port​

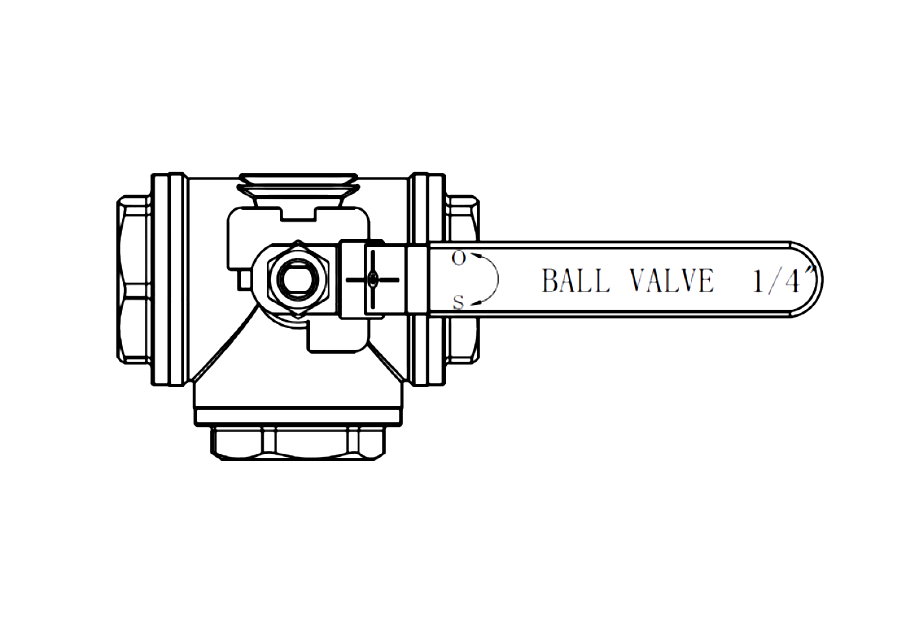

Low Pressure 1000 PSI Stainless Steel 3 Way Ball Valve L- Port​ Drawing

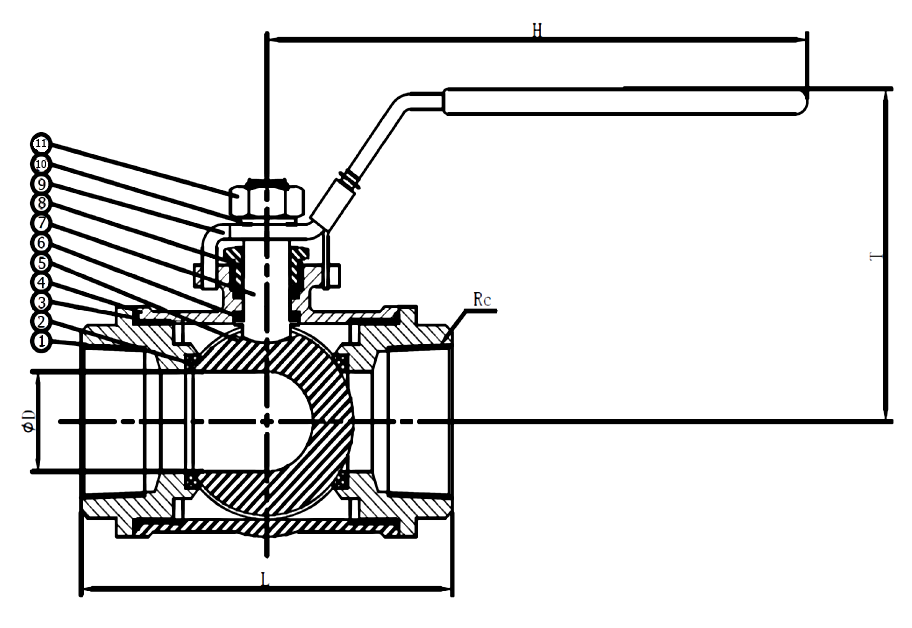

Low Pressure 1000 PSI Stainless Steel 3 Way Ball Valve L- Port (Internal Parts)​ Drawing
Low Pressure 1000 PSI Stainless Steel 3 Way Ball Valve L- Port​ Drawing

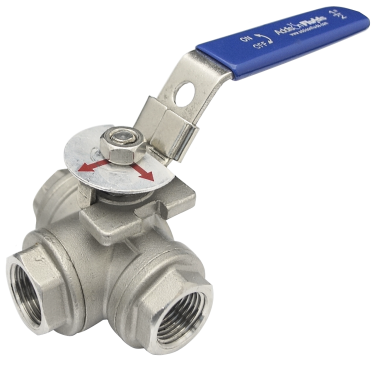

Low Pressure 1000 PSI Stainless Steel 3 Way Ball Valve L- Port​ (Top View) Drawing

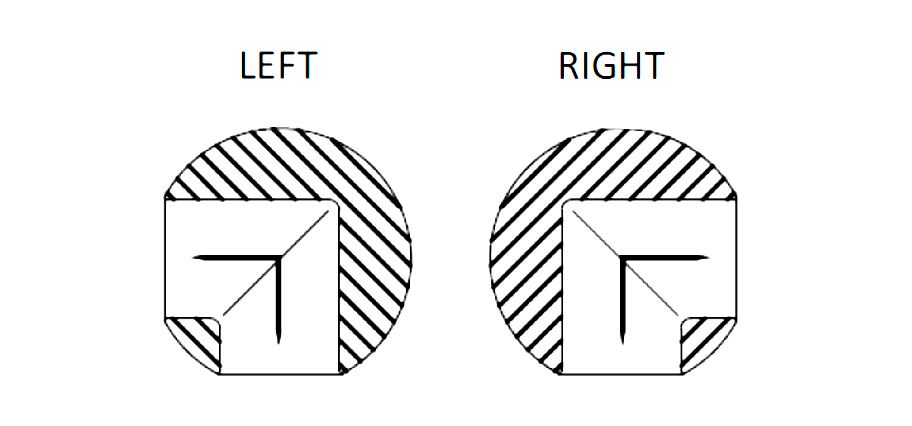

Flow Direction Drawing
Low Pressure 1000 PSI Stainless Steel 3 Way Ball Valve L- Port​ (Flow Direction) Drawing
No
Part Name
Material
1
Bonnet
SS316 & CF8M
2
Seat
PTFE
3
Gasket
PTFE
4
Body
SS316 & CF8M
5
Ball
SS316
6
Thrust Gasket
PTFE
7
Stem
SS316
8
Gland
SS304
9
Handle
SS201
10
Washer
SS304
11
Nut
​SS304

Dimension List

NPS
Connection
IMPA Code
Part No
d
L
H
T
Weight (kg)
1/4"
BSPP
-
VL-S-BL-G-1000-04
6
65.5
100
51
0.58
3/8"
BSPP
-
VL-S-BL-G-1000-06
6
65.5
100
51
0.55
1/2"
BSPP
-
VL-S-BL-G-1000-08
10
75.5
100
57
0.52
3/4"
 BSPP
-
VL-S-BL-G-1000-12
15
82.5
108
62
0.71
1"
BSPP
-
VL-S-BL-G-1000-16
20
88
140
72
0.98
1  1/4"
 BSPP
-
VL-S-BL-G-1000-20
25
105
152
88
2.18
1  1/2"
BSPP
-
VL-S-BL-G-1000-24
32
135
166
100
3.17
2"
BSPP
-
VL-S-BL-G-1000-32
39
149
170
102
4.38
1/4"
​NPT
-
VL-S-BL-N-1000-04
6
65.5
100
51
0.58
3/8"
​NPT
-
VL-S-BL-N-1000-06
6
65.5
100
51
0.55
1/2"
​​NPT
-
VL-S-BL-N-1000-08
10
75.5
100
57
0.52
3/4"
​NPT
-
VL-S-BL-N-1000-12
15
82.5
108
62
0.71
1"
​NPT
-
VL-S-BL-N-1000-16
20
88
140
72
0.98
1  1/4"
​NPT
-
VL-S-BL-N-1000-20
25
105
152
88
2.18
1  1/2"
​NPT
-
VL-S-BL-N-1000-24
32
135
166
100
3.17
2"
​NPT
-
VL-S-BL-N-1000-32
39
149
170
102
4.38
