PN10/16 EN 1983PN10/16 SS316 flange end ball valve, 3/4" to 6"
A flanged quarter‑turn ball valve with PN10/16 flanges, 3/4" to 6" (DN20 to DN150), in Stainless steel SS316. Designed and manufactured to EN 1983, flange ends to EN 1092‑1. Shell tested at 2.4 MPa, for service at −29 °C to 150 °C.
The PN10/16 SS316 flange end ball valve
Built to EN 1983, with PN10/16 flanges.
A quarter‑turn ball valve that bolts into the line through PN10/16 flanges, in 3/4" to 6" (DN20 to DN150). The body is Stainless steel SS316 and it is designed and manufactured to EN 1983, with face‑to‑face dimensions to EN 558 & S15 and flange ends to EN 1092‑1.
On a flanged valve the standard is not paperwork — it is the dimensions. The PN10/16 drilling has to match the flange it bolts to, and the face‑to‑face length has to match the gap in the pipe run. Both are in the size table. The other three flange standards we stock will not bolt to this one. All six compared.
- Stainless throughout the pressure boundary. Body, ball and stem in SS316 (with CF8M, the cast equivalent, where the part is cast). Everything wetted is SS316 or PTFE.
- PTFE everywhere it seals. Seat, gasket, O‑ring and packing are all PTFE — which is what sets the 150 °C ceiling, not the stainless.
- No anti‑static device listed. The two cast‑steel variants fit an SS304 anti‑static device; this parts list does not include one. If you are on hydrocarbon duty and need the ball bonded to the body, tell us and we will confirm with the factory.
- SS304 fasteners. Studs, nuts and screws in SS304 — more corrosion‑resistant than the A193 B7 bolting on cast steel, and lower strength.
- ⚠ This table publishes no weights. The source carries dimensions for every size but no weight column at all. We have not estimated them — ask us and we will weigh the size you need. It also publishes two bore figures, d and d1, which run within a millimetre of each other.
- Tested at 2.4 MPa shell, not separately published seat and 0.6 MPa gas tightness, for service at −29 °C to 150 °C. Those are factory proof tests, not working pressures — do not design to them. The figures.

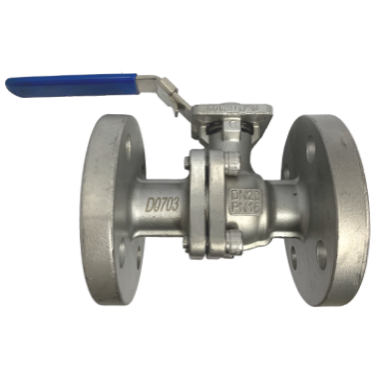

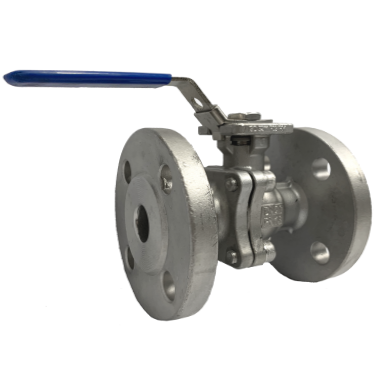

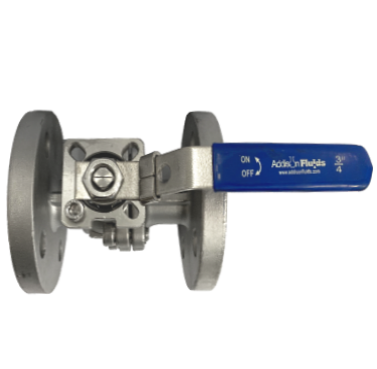

Three angles on the same valve. All photographs of the stocked item, not renders.
Specification
Everything that goes on a purchase order.
| Size range | 3/4" to 6" (DN20 to DN150) |
| Flange standard | PN10/16 — not interchangeable with ANSI, JIS or PN alternatives |
| Design and manufacture | EN 1983 |
| Face‑to‑face dimensions | EN 558 & S15 |
| Flange ends | EN 1092‑1 |
| Body material | Stainless steel SS316 |
| Trim | SS316 |
| Seat | PTFE — which sets the temperature ceiling |
| Shell test pressure | 2.4 MPa |
| Seat test pressure | not separately published |
| Gas tightness test | 0.6 MPa |
| Maximum working temperature | −29 °C to 150 °C |
| Operation | Quarter turn manual lever |
| Stock | Held in Malaysia or Singapore |
Bill of materials
All 17 parts and what each is made of, with the manufacturer’s own item numbers.
| No | Part name | Material |
|---|---|---|
| 1 | Cap | SS316 and CF8M |
| 2 | Bolt | SS316 |
| 3 | Nut | SS316 |
| 4 | Gasket | PTFE |
| 5 | Seat | PTFE |
| 6 | Ball | SS316 |
| 7 | Body | SS316 and CF8M |
| 8 | Stem | SS316 |
| 9 | Thrust Washer | PTFE |
| 10 | Packing | PTFE |
| 11 | Gland | SS316 |
| 12 | Flange Gland | SS316 and CF8M |
| 13 | Orientation Patch | SS201 |
| 14 | Handle | SS201 |
| 15 | Bolt | SS304 |
| 16 | Nut | SS304 |
| 17 | Bolt | SS304 |

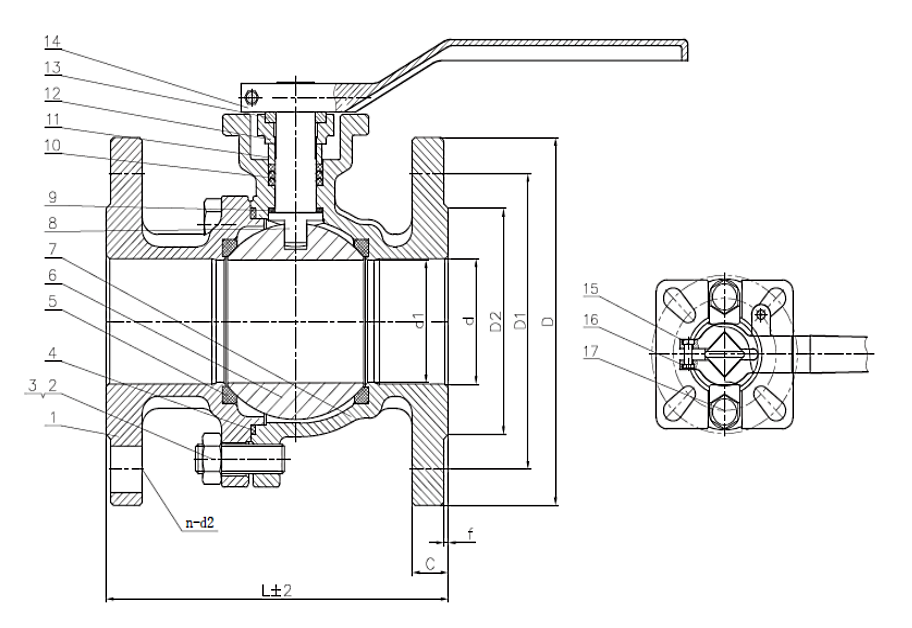

The manufacturer’s sectional drawing. The callout numbers correspond to the part numbers in the table above.
- The item numbers are the manufacturer’s, not a 1–17 list. They are the callout numbers from the sectional drawing, which is why they skip and why some carry letters. We have left them exactly as published so a spares order matches the drawing.
- The PTFE seat sets the temperature ceiling, not the body. That is why this valve tops out at −29 °C to 150 °C whatever the body is made of.
- Everything here is published, not on request. If you need to know what touches your fluid, the whole list is above.
Sizes and dimensions
10 sizes. Dimensions in millimetres.
The two figures that decide whether the valve fits are face‑to‑face L — the gap it needs in the pipe run — and the bolt circle with its hole pattern, which has to match the mating flange. Letters follow the manufacturer’s drawing; where a letter is ambiguous we have left it as published rather than guess at it.
| Size | Part no | DN | Bore d | Bore d1 | Flange OD D | Bolt circle D1 | Raised face D2 | Face‑to‑face L | Flange thk C | Bolts N‑d2 | RF height f |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 3/4" | VL-S-B2-F-PN16-12 | 20 | 20 | 19 | 105 | 75 | 58 | 120 | 18 | 4- 14 | 2 |
| 1" | VL-S-B2-F-PN16-16 | 25 | 25 | 24 | 115 | 85 | 68 | 125 | 18 | 4- 14 | 2 |
| 1 1/4" | VL-S-B2-F-PN16-20 | 32 | 32 | 31 | 140 | 100 | 78 | 130 | 18 | 4- 18 | 2 |
| 1 1/2" | VL-S-B2-F-PN16-24 | 38 | 40 | 39 | 150 | 110 | 88 | 140 | 18 | 4- 18 | 2 |
| 2" | VL-S-B2-F-PN16-32 | 50 | 50 | 49 | 165 | 125 | 102 | 150 | 18 | 4- 18 | 2 |
| 2 1/2" | VL-S-B2-F-PN16-40 | 65 | 65 | 64 | 185 | 145 | 122 | 170 | 18 | 4- 18 | 2 |
| 3" | VL-S-B2-F-PN16-48 | 78 | 80 | 79 | 200 | 160 | 138 | 180 | 20 | 8- 18 | 2 |
| 4" | VL-S-B2-F-PN16-64 | 100 | 100 | 99 | 220 | 180 | 158 | 190 | 20 | 8- 18 | 2 |
| 5" | VL-S-B2-F-PN16-80 | 125 | 125 | 125 | 250 | 210 | 188 | 325 | 22 | 8- 18 | 2 |
| 6" | VL-S-B2-F-PN16-96 | 150 | 150 | 150 | 285 | 240 | 212 | 350 | 22 | 8- 22 | 2 |
- ⚠ Check the bolt circle before you order. It is the one dimension that cannot be worked around. PN10/16 will not bolt to any of the other three standards we stock, whatever the pressure rating says. The comparison.
- Measure the gap in the run against face‑to‑face L, especially on a replacement — and measure the valve coming out rather than trusting a drawing.
- Leave clearance for the lever. It needs a clear 90° sweep and on the larger sizes it is long. Send us the space you have if it is tight.
- Support the weight. These are not light at the top of the range, and a flanged valve must not hang on the pipework.
Test pressures and temperature
Factory proof tests. Not working pressures.
| Nominal Pressure | 1.6 MPa |
| Shell Test Pressure | 2.4 MPa |
| Gas Test | 0.6 MPa |
| Max Working Temperature | -29&°;C to 150&°;C |
- ⚠ Do not design to these figures. They are manufacturing proof tests well above the working rating — the shell test proves the casting, the seat test proves the seal, and the gas test proves it holds low‑pressure gas. The valve is not intended to operate there.
- Gas tightness is 0.6 MPa across the whole range — the one figure that does not change with class or material.
- The temperature limit is the PTFE seat. Stainless steel SS316 would take far more; the seat is what stops it. All six variants compared.
Not sure this is the right one?
Flange standard first, then material.
Choose this one when
- Your pipework is PN10/16 — checked, not assumed.
- Your specification names EN 1983, EN 558 & S15 or EN 1092‑1.
- The duty suits Stainless steel SS316.
- Service is within −29 °C to 150 °C.
Choose something else when
- Your pipework is a different flange standard → pick by flange. Nothing here bolts across standards.
- The duty is hot, clean and non‑corrosive and cost matters → a cast steel variant, with graphite packing.
- You need threaded or weld ends, or a size below 1/2" → ball valves, 1/8" to 4".
- You need to throttle rather than isolate → globe valves.
- You need higher pressure → high pressure ball valves.
All six, side by side: the comparison table. Other variants: ANSI 150 SS316 · ANSI 150 cast steel · ANSI 300 SS316 · ANSI 300 cast steel · JIS 10K SS316.
Questions we get asked
The ones that come up on the phone.
What is the PN10/16 SS316 flange end ball valve?
A quarter‑turn ball valve with PN10/16 flanges, 3/4" to 6" (DN20 to DN150), in Stainless steel SS316. It is designed and manufactured to EN 1983, with face‑to‑face dimensions to EN 558 & S15 and flange ends to EN 1092‑1. Tested at 2.4 MPa shell and 0.6 MPa gas tightness, for service at −29 °C to 150 °C.
Will it bolt to my pipework?
Only if your pipework is PN10/16. That is the whole question on a flanged valve, and it is not answered by the pressure rating — ANSI 150, JIS 10K and PN10/16 are all rated around 1.6 to 2 MPa and none of them bolts to another, because the bolt circles differ. Count the bolt holes and measure the bolt circle on the mating flange, or send us a photo. All four standards.
What standard is it built to?
EN 1983 for design and manufacture, EN 558 & S15 for face‑to‑face dimensions, and EN 1092‑1 for the flange ends. If your specification names one of those, it names this valve. The other five variants in this range are built to different standards. The full stack.
What is it made of?
Body, ball and stem in SS316 (and CF8M, the cast equivalent, where the part is cast), with PTFE seat, gasket, O‑ring and packing, and SS304 fasteners. Everything in the pressure boundary is stainless. Note the published parts list does not include an anti‑static device. The full numbered list is on this page.
What temperature can it run at?
−29 °C to 150 °C. The limit is the PTFE seat rather than the body — the Stainless steel SS316 would take considerably more. All six variants compared.
What are the shell and seat test pressures?
2.4 MPa shell, not separately published seat and 0.6 MPa gas tightness. These are factory proof tests, not working pressures — do not design to them. Gas tightness is 0.6 MPa on all six variants; the shell figure roughly doubles between Class 150 and Class 300. The table.
Which dimension decides whether it drops into my pipe run?
Face‑to‑face L — the length between the two flange faces. Measure the gap in the run, and on a replacement measure the valve you are taking out rather than trusting a drawing. You also need the bolt circle and hole pattern to match. Both are in the size table.
Do you supply threaded ball valves instead?
Yes — eight threaded and weld‑end variants from 1/8" to 4", including one, two and three‑piece bodies, three‑way L‑port and T‑port, brass, and two mini ranges. Threaded suits smaller sizes and permanent installations; flanged suits larger sizes and anything you expect to remove for service.
What sizes do you hold in stock?
3/4" to 6" (DN20 to DN150), held in Malaysia or Singapore. Send the size and the flange standard and we will confirm availability and a landed price — transport, currency, duties and taxes already inside the figure. The full dimension table is above.
Catalogue
Direct PDF download — no form, no email address.
Send the flange standard and the size
We will confirm the PN10/16 drilling matches your pipework, check the face‑to‑face against the gap in your run, and quote a landed price. Stock in Malaysia and Singapore.
