T-Port Ball Valve
|
|
|
|
Size |
|
Material |
|
Working Pressure |
|
Connection Type |
|
CATALOGUE :

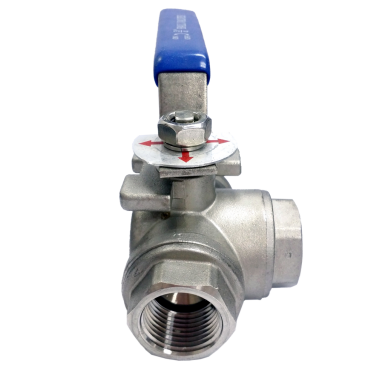

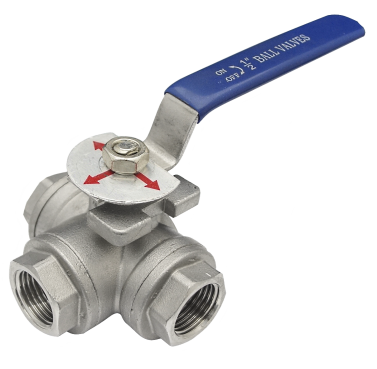

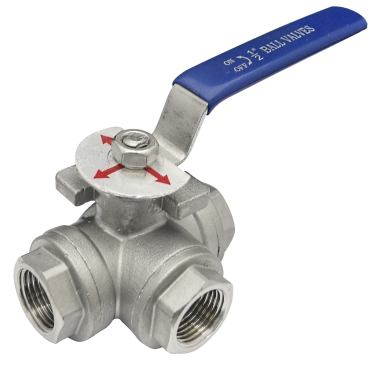

Low Pressure 1000 PSI Stainless Steel 3 Way Ball Valve T-Port

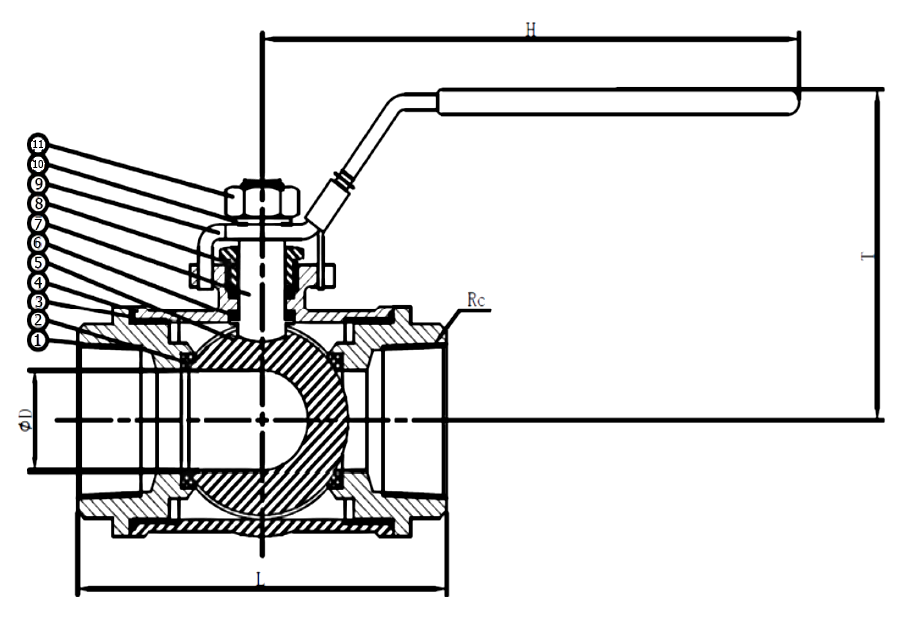

Low Pressure 1000 PSI Stainless Steel 3 Way Ball Valve T-Port​ (Internal Parts) Drawing

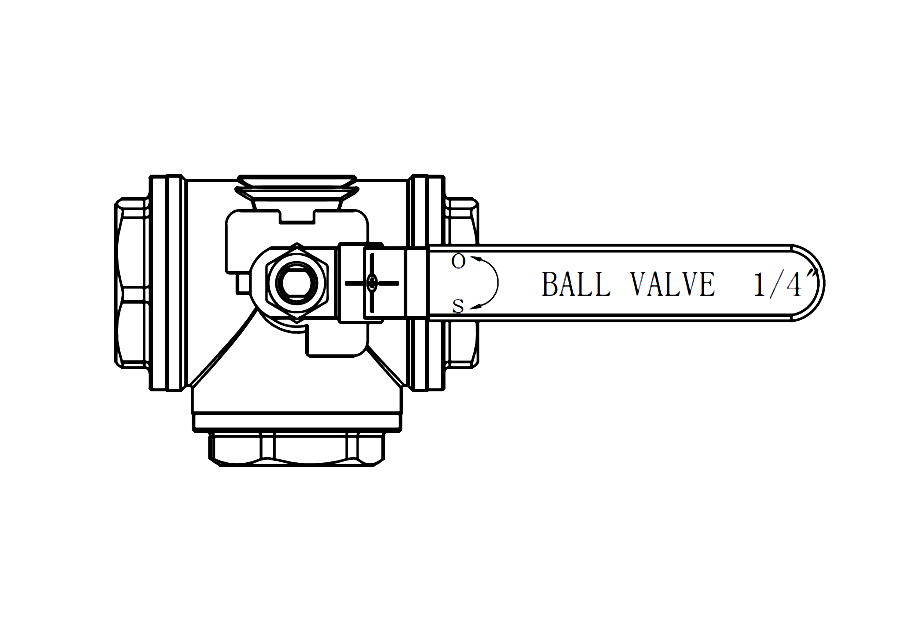

Low Pressure 1000 PSI Stainless Steel 3 Way Ball Valve T-Port (Top View)​ Drawing

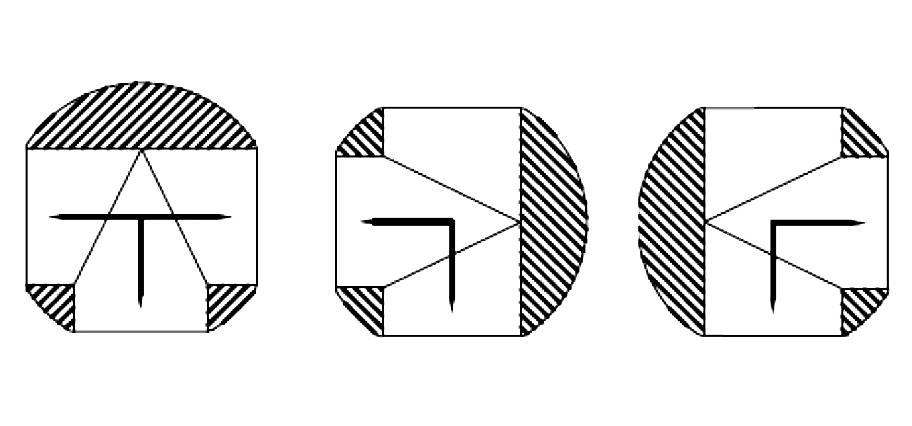

Low Pressure 1000 PSI Stainless Steel 3 Way Ball Valve T-Port (Flow Direction) Drawing
No |
Part Name |
Material |
1 |
Bonnet |
SS316 & CF8M |
2 |
Seat |
PTFE |
3 |
Gasket |
PTFE |
4 |
Body |
SS316 & CF8M |
5 |
Ball |
SS316 |
6 |
Thrust Gasket |
PTFE |
7 |
Stem |
SS316 |
8 |
Gland |
SS304 |
9 |
Handle |
SS201 |
10 |
Washer |
SS304 |
11 |
Nut |
SS304 |
Dimension List
NPS |
Connection |
IMPA Code |
Part No |
D |
L |
H |
T |
Weight (kg) |
1/4" |
BSPP |
- |
VL-S-BT-G-1000-04 |
6 |
65.5 |
100 |
51 |
0.58 |
3/8" |
BSPP |
- |
VL-S-BT-G-1000-06 |
6 |
65.5 |
100 |
51 |
0.55 |
1/2" |
BSPP |
- |
VL-S-BT-G-1000-08 |
10 |
75.5 |
100 |
57 |
0.52 |
3/4" |
BSPP |
- |
VL-S-BT-G-1000-12 |
15 |
82.5 |
108 |
62 |
0.71 |
1" |
BSPP |
- |
VL-S-BT-G-1000-16 |
20 |
88 |
140 |
72 |
0.98 |
1 1/4" |
BSPP |
- |
VL-S-BT-G-1000-20 |
25 |
105 |
152 |
88 |
2.18 |
1 1/2" |
BSPP |
- |
VL-S-BT-G-1000-24 |
32 |
135 |
166 |
100 |
3.17 |
2" |
BSPP |
- |
VL-S-BT-G-1000-32 |
39 |
149 |
170 |
102 |
4.38 |
1/4" |
NPT |
- |
VL-S-BT-N-1000-04 |
6 |
65.5 |
100 |
51 |
0.58 |
3/8" |
NPT |
- |
VL-S-BT-N-1000-06 |
6 |
65.5 |
100 |
51 |
0.55 |
1/2" |
NPT |
- |
VL-S-BT-N-1000-08 |
10 |
75.5 |
100 |
57 |
0.52 |
3/4" |
NPT |
- |
VL-S-BT-N-1000-12 |
15 |
82.5 |
108 |
62 |
0.71 |
1" |
NPT |
- |
VL-S-BT-N-1000-16 |
20 |
88 |
140 |
72 |
0.98 |
1 1/4" |
NPT |
- |
VL-S-BT-N-1000-20 |
25 |
105 |
152 |
88 |
2.18 |
1 1/2" |
NPT |
- |
VL-S-BT-N-1000-24 |
32 |
135 |
166 |
100 |
3.17 |
2" |
NPT |
- |
VL-S-BT-N-1000-32 |
39 |
149 |
170 |
102 |
4.38 |
T-Port Ball Valve Catalogue
Conditions of Use of Catalogue
Specifications of the Products or other information on the subject of the agreement serve only as a description and include no guarantee on their condition. Deviations from these specifications are not considered as defects as long as they remain within the frame of the state-of-the-art permitted and as long as their functionality is not considerably affected.
