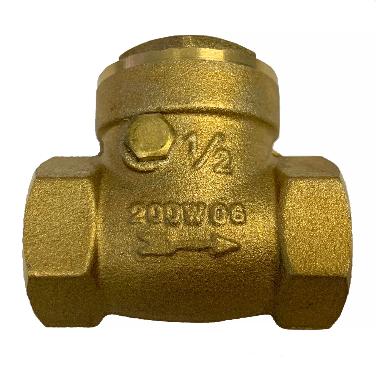

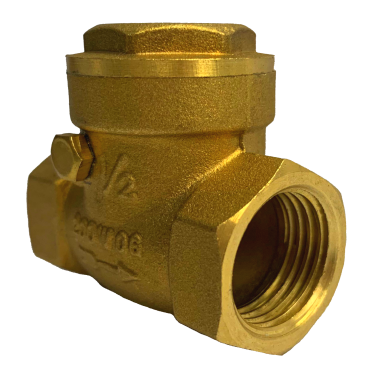

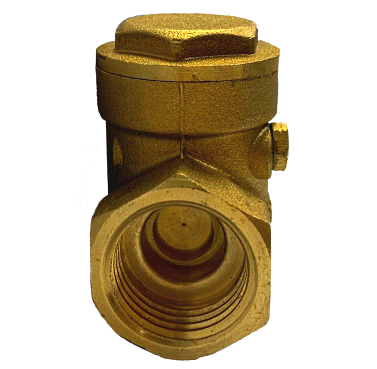

Threaded End Brass Swing Check Valve

​Size	​1/2" to 4" (DN40-100)
Material	Brass
Working Pressure	200 PSI 300 PSI
Connection Type	NPT

CATALOGUE :

​​​Threaded End Brass Swing Check Valve

---

Threaded End Brass Swing Check Valve

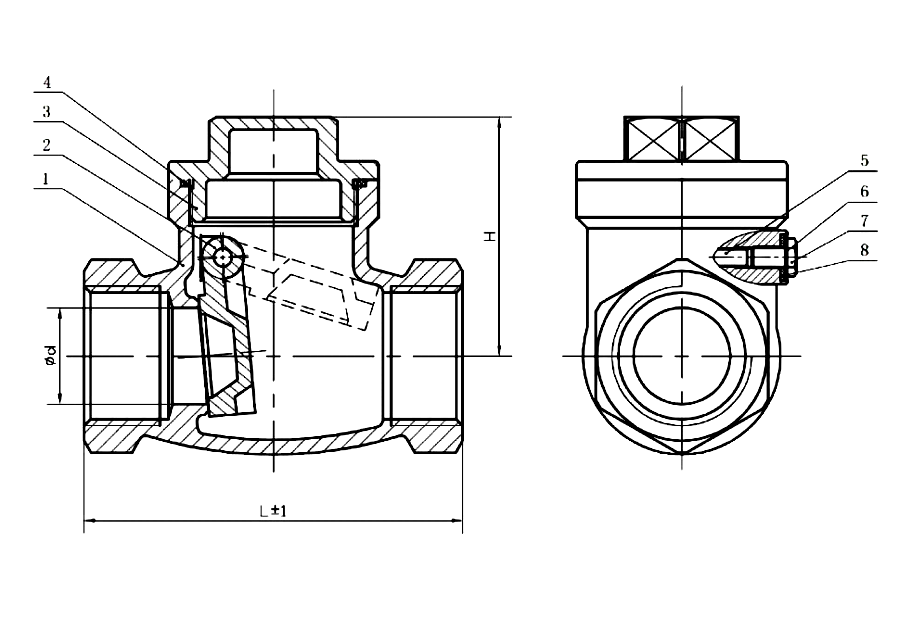

Threaded End Brass Swing Check Valve Drawing

No	Part Name	Brass Material
1	Body	Brass
2	Disc	Brass
3	Cap	Brass
4	Body Gasket	PTFE
5	Pin	Brass
6	Plain Washer	Brass
7	Bolt	Brass
8	Gasket	PTFE

---

Dimension List

NPS	Connection	IMPA Code	Part No	L	H	d	Weight (kg)
1/2"	NPT	-	VL-B-SC-N-200-08	45	31	12.8	0.13
3/4"	NPT	-	VL-B-SC-N-300-12	55	36	17.0	0.18
1"	NPT	-	VL-B-SC-N-300-16	61.5	43	23.0	0.28
1  1/4"	NPT	-	VL-B-SC-N-300-20	68	54	29.5	0.45
1  1/2"	NPT	-	VL-B-SC-N-300-24	83	57	31.0	0.55
2"	NPT	-	VL-B-SC-N-300-32	95.5	68	41.0	0.86
2  1/2"	NPT	-	VL-B-SC-N-200-40	120	78	57.0	1.80
3"	NPT	-	VL-B-SC-N-300-48	144	86	66.0	2.60
4"	NPT	-	VL-B-SC-N-300-64	164	105	91.0	4.20

---

Technical Specifications

Basic design and manufacture according to ANSI B16.34
Threaded ends complied with ANSI B1.20.1
Inspection according to API598

---

Threaded End Brass Swing Check Valve Catalogue

threaded end brass swing check valve pdf

---
