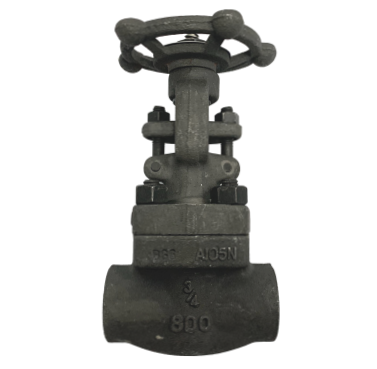

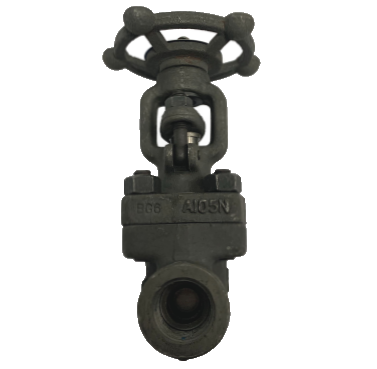

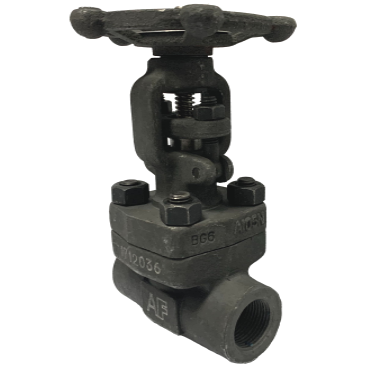

Threaded End Forged Steel Gate Valve

Threaded End Forged Steel Gate Valve
Threaded End Forged Steel Gate Valve
Threaded End Forged Steel Gate Valve
​Size
  • 1/2" – 2”
Material
  • A105
Working Pressure
  • ​800 PSI
Connection Type
  • NPT
CATALOGUE :

​​​Threaded End Forged Steel Gate Valve


Threaded End Forged Steel Gate Valve

Threaded End Forged Steel Gate Valve Drawing
Threaded End Forged Steel Gate Valve Drawing
No
Part Name
Material
1
Body
ASTM A105
2
Seat
ASTM A276 410 + STL
3
Wedge
ASTM A276 420
4
Stem
ASTM F182 F6A
5
Gasket
SS304 + Graphite
6
Bonnet
ASTM A105
7
Bonnet Nut
ASTM A194 2H
​8
Bonnet Bolt
​ASTM A193 B7
9
Packing
​Graphite
10
Pin
 ​ASTM A307-A
11
Gland
ASTM A276 410
12
Gland Flange
ASTM A105
13
Gland Bolt
ASTM A193 B7
14
Gland Nut
​ASTM A194 2H
15
Yoke Sleeve
 ​ASTM A276 410
16
Lock Nut
​Carbon Steel
17
​Handwheel
​​ASTM A197

Dimension List

NPS
​Ød
L
H
W
1/2"
10.3
79
145
100
​3/4"
​13.5
92
145
100
​1"
​18
111
170
125
​1  1/4"
23
120
190
160
​1  1/2"
​29
​120
215
160
​2"
​36
140
240
180

Main Technical Parameter

Nominal Pressure
​800 PSI
​Shell Test Pressure
21.0 MPa
​Seal Test
15.4 MPa
Gas-Tightness Test
0.6 MPa
Max Working Pressure
-29°C to 425​°C

Technical Specifications

Basic design and manufacture according to API602/BS5352
Inspection and test for according to API 598
Connection screw for the valve accordingto ASME B1.20.1

Threaded End Forged Steel Gate Valve Catalogue

threaded end forged steel gate valve

Conditions of Use of Catalogue​
Specifications of the Products or other information on the subject of the agreement serve only as a description and include no guarantee on their condition. Deviations from these specifications are not considered as defects as long as they remain within the frame of the state-of-the-art permitted and as long as their functionality is not considerably affected.
