Threaded End Forged Steel Globe Valve

Threaded End Forged Steel Globe Valve
Threaded End Forged Steel Globe Valve
Threaded End Forged Steel Globe Valve
Threaded End Forged Steel Globe Valve
​Size
  • ​1/2" to 2" (DN15-50)
Material
  • ​A105
Working Pressure
  • 800 PSI
Connection Type
  • NPT
CATALOGUE :

​​​​Threaded End Forged Steel Globe Valve​

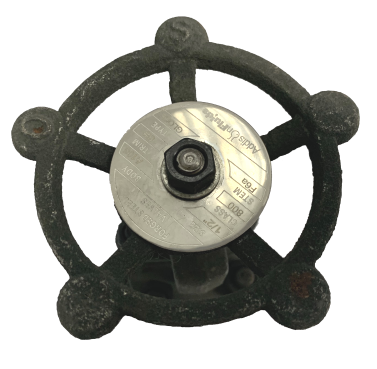

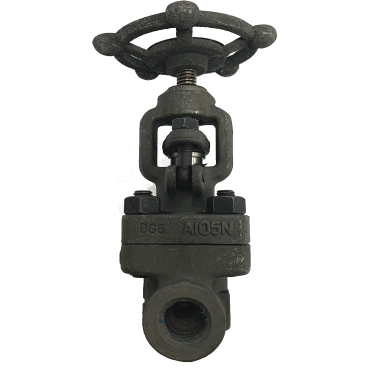

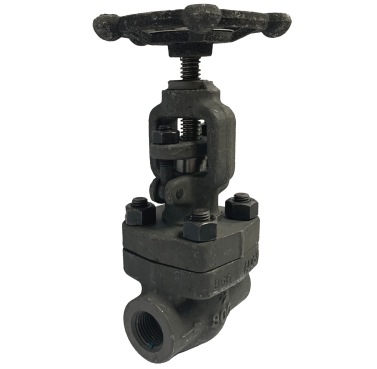

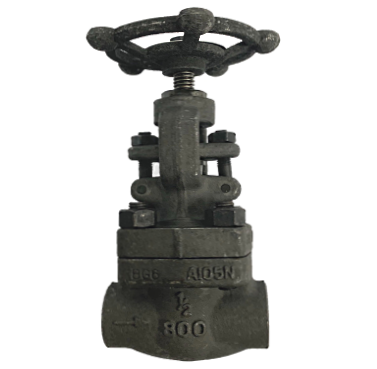

Threaded End 150# Forged Steel Globe Valve

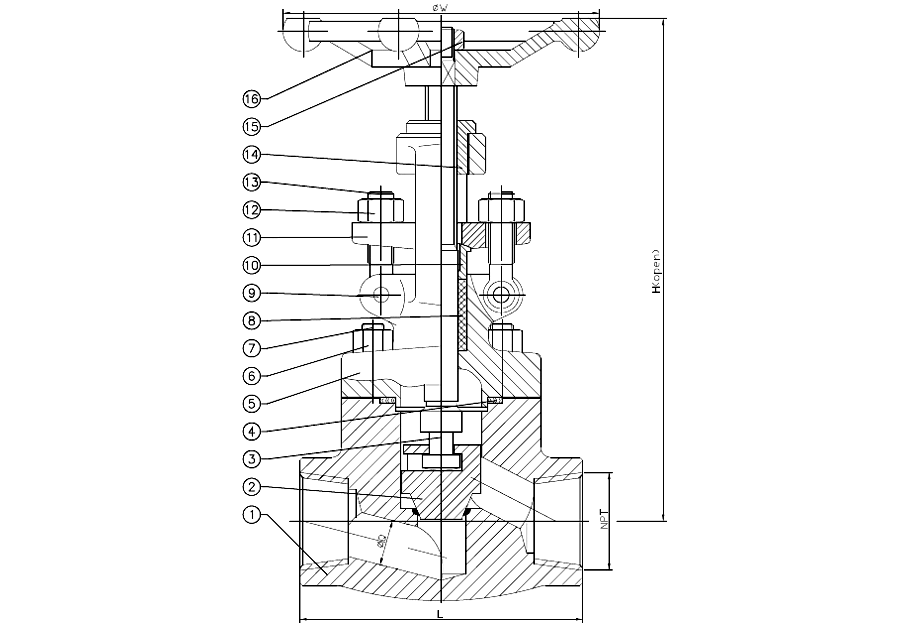

Threaded End Forged Steel Globe Valve Drawing
Threaded End Forged Steel Globe Valve Drawing
No
Part Name
Material
1
Body + Seat
ASTM A105 + STL
2
Disc
ASTM A276 420
3
Stem
ASTM A182 F6A
4
Gasket
SS304 + Graphite
5
Bonnet
ASTM A105
6
​Bonnet Nut
ASTM A194 2H
7
Bonnet Bolt
ASTM A193 B7
8
Packing
​Graphite
9
Pin
​ASTM A307-A
10
Gland
​ASTM A276 410
11
Gland Flange
​ASTM A105
12
Gland Nut
​ASTM A194 2H
13
Gland Bolt
​ASTM A193 B7
14
Yoke Sleeve
​ASTM A276 410
15
Lock Nut
​Carbon Steel
16
Handwheel
​ASTM A197

Dimension List

NPS
ØQ
L
H
W
1/2"
10
79
160
100
3/4"
13
92
160
100
1"
18
111
200
125
1  1/4"
23
120
215
160
1  1/2"
30
152
240
160
2"
37
172
276
180

Main Technical Parameter

Nominal Pressure
800#
​Shell Test Pressure
21.0 MPa
​Tightness Test
15.4 MPa
Gas-Tightness Test
0.6 MPa
Max Working Pressure
-29°C to 425°C

​Technical Specifications

Basic design and manufacture according to API602/BS5352
Inspection and test for according to API 598
Connection screw for the valve according to ASME B1.20.1

Threaded End 150# Forged Steel Globe Valve Catalogue

threaded end forged steel globe valve pdf

Conditions of Use of Catalogue​
