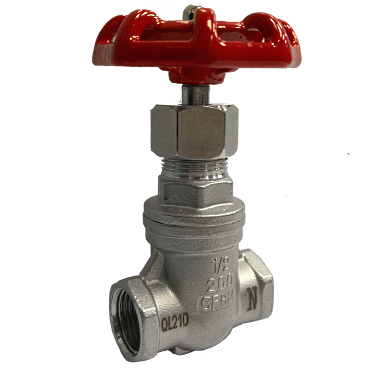

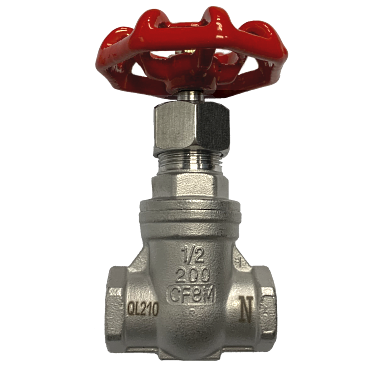

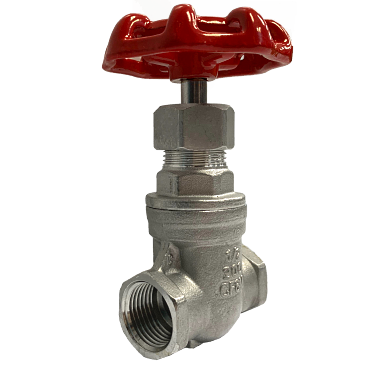

Threaded End SS316 Gate Valve (200 PSI)
|
Vertical Divider
|
|
|
Size |
|
Material |
|
Working Pressure |
|
Connection Type |
|
CATALOGUE :
Threaded End SS316 Gate Valve (200 PSI)
Threaded End SS316 Gate Valve (200 PSI) Drawing
No |
Part Name |
Material |
1 |
Body |
A351 CF8/CF8M |
2 |
Wedge |
A351 CF8/CF8M |
3 |
Stem |
SS316 |
4 |
Stem Holder |
SS316 |
5 |
Gasket |
PTFE |
6 |
Bonnet |
A351 CF8/CF8M |
7 |
Packing |
PTFE |
8 |
Ring |
SS316 |
9 |
Cap |
A351 CF8/CF8M |
10 |
Gasket |
SS304 |
11 |
Nut |
SS304 |
12 |
Handwheel |
ZL101 |
Dimension List
NPS |
L |
d |
H |
D |
1/2" |
51.6 |
13.7 |
89.5 |
63.1 |
3/4" |
56.8 |
18.3 |
96.8 |
63.1 |
1" |
60.2 |
24.2 |
108.9 |
70.6 |
1 1/4" |
70.2 |
25.3 |
120.6 |
70.6 |
1 1/2" |
73.1 |
31.6 |
132.9 |
96.5 |
2" |
84.2 |
44.5 |
153.4 |
98.3 |
Main Technical Parameter
Nominal Pressure |
200 PSI |
Shell Test Pressure |
2.1 MPa |
Seal Test |
1.6 MPa |
Back Seal Test |
1.6 MPa |
Gas-Tightness Test |
0.6 MPa |
Max Working Pressure |
-29°C to 150°C |
Technical Specifications
Basic design and manufacture according to ASME B16.34
Inspection and test for according to API 598
Connection screw for the valve according to ANSI B1.20.1, ISO 7-1, ISO 228-1, DIN 259/2999
Inspection and test for according to API 598
Connection screw for the valve according to ANSI B1.20.1, ISO 7-1, ISO 228-1, DIN 259/2999
Threaded End SS316 Gate Valve (200 PSI) Catalogue
