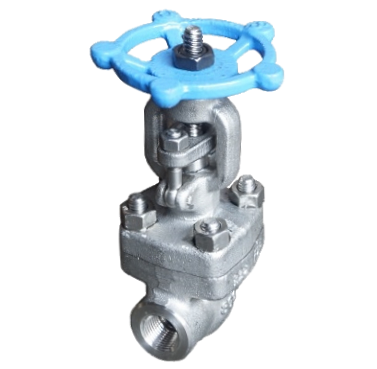

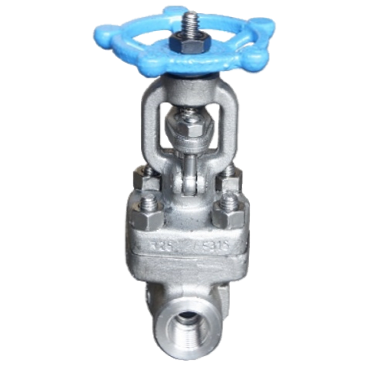

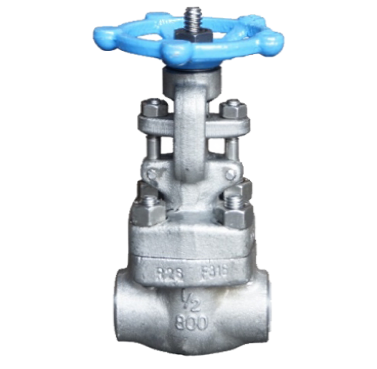

Threaded End SS316 Gate Valve (800 PSI)
|
|
|
Size |
|
Material |
|
Working Pressure |
|
Connection Type |
|
CATALOUGE :
Threaded End SS316 Gate Valve (800 PSI)
Threaded End SS316 Gate Valve (800 PSI) Drawing
No |
Part Name |
Material |
1 |
Body |
F316 |
2 |
Wedge |
316 + STL |
3 |
Seat |
316 + STL |
4 |
Stem |
316 |
5 |
Gasket |
316 + Graphite |
6 |
Bonnet |
F316 |
7 |
Stud Bolt |
SS304 |
8 |
Nut |
SS304 |
9 |
Packing |
Graphite |
10 |
Pin |
304 |
11 |
Gland Eyebolt |
SS304 |
12 |
Gland |
316 |
13 |
Gland Flange |
F304 |
14 |
Hex Nut |
SS304 |
15 |
Stem Nut |
410 |
16 |
Handwheel |
A197 |
17 |
Locking Nut |
ASTM 1035 |
Dimension List
NPS |
L |
d |
H |
D |
1/2" |
51.6 |
13.7 |
89.5 |
63.1 |
3/4" |
56.8 |
18.3 |
96.8 |
63.1 |
1" |
60.2 |
24.2 |
108.9 |
70.6 |
1 1/4" |
70.2 |
25.3 |
120.6 |
70.6 |
1 1/2" |
73.1 |
31.6 |
132.9 |
96.5 |
2" |
84.2 |
44.5 |
153.4 |
98.3 |
Main Technical Parameter
Nominal Pressure |
800 PSI |
Strength Test |
21.5 MPa |
Sealing Test |
15.5 MPa |
Back Seat Test |
15.5 MPa |
Air Sealing Test |
0.6 MPa |
Max Working Pressure |
≤ 200 |
Technical Specifications
Basic design and manufacture according to API 602
Inspection and test for according to API 598
Connection screw for the valve according to ASME B1.20.1
Inspection and test for according to API 598
Connection screw for the valve according to ASME B1.20.1
