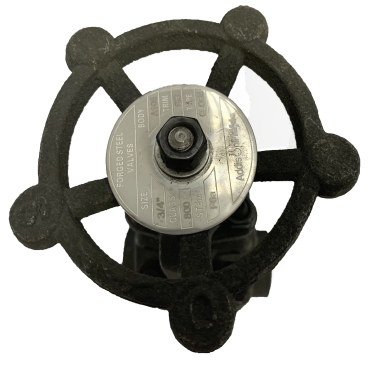

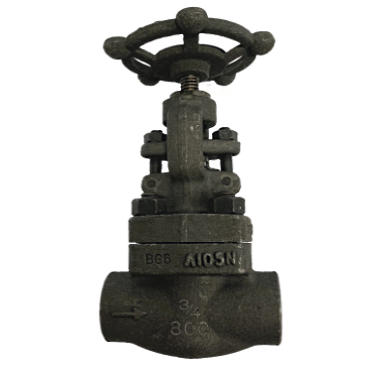

Welded End Forged Steel Globe Valve
|
|
|
|
Size |
|
Material |
|
Working Pressure |
|
Connection Type |
|
CATALOGUE :
Welded End Forged Steel Globe Valve

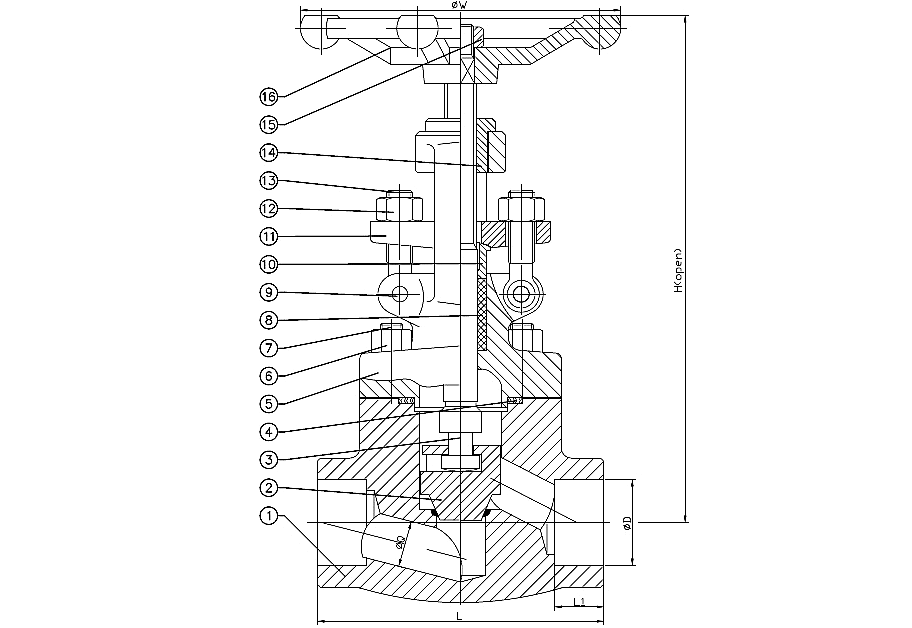

Welded End Forged Steel Globe Valve Drawing
No |
Part Name |
Material |
1 |
Body + Seat |
ASTM A105 + STL |
2 |
Disc |
ASTM A276 420 |
3 |
Stem |
ASTM A182 F6A |
4 |
Gasket |
SS304 + Graphite |
5 |
Bonnet |
ASTM A105 |
6 |
Bonnet Nut |
ASTM A194 2H |
7 |
Bonnet Bolt |
ASTM A193 B7 |
8 |
Packing |
Graphite |
9 |
Pin |
ASTM A307-A |
10 |
Gland |
ASTM A276 410 |
11 |
Gland Flange |
ASTM A105 |
12 |
Gland Nut |
ASTM A194 2H |
13 |
Gland Bolt |
ASTM A193 B7 |
14 |
Yoke Sleeve |
ASTM A276 410 |
15 |
Lock Nut |
Carbon Steel |
16 |
Handwheel |
ASTM A197 |
Dimension List
NPS |
ØQ |
ØD |
H |
W |
L |
L1 |
1/2" |
10 |
21.8 |
160 |
100 |
79 |
9.6 |
3/4" |
13 |
27.1 |
160 |
100 |
92 |
12.7 |
1" |
18 |
33.8 |
200 |
125 |
111 |
12.7 |
1 1/4" |
23 |
42.6 |
215 |
160 |
120 |
12.7 |
1 1/2" |
30 |
48.7 |
240 |
160 |
152 |
12.7 |
2" |
37 |
61.2 |
275 |
180 |
172 |
12.7 |
Main Technical Parameter
Nominal Pressure |
800 PSI |
Shell Test Pressure |
19.5 MPa |
Seal Test |
14.3 MPa |
Gas-Tightness Test |
0.6 MPa |
Max Working Pressure |
-29°C to 425°C |
Technical Specifications
Basic design and manufacture according to API602/BS5352
Inspection and test for according to API 598
Socket weld dimension standard according to ASME B16.11
Inspection and test for according to API 598
Socket weld dimension standard according to ASME B16.11
